  6. Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 120V AC, High Flow, Brass

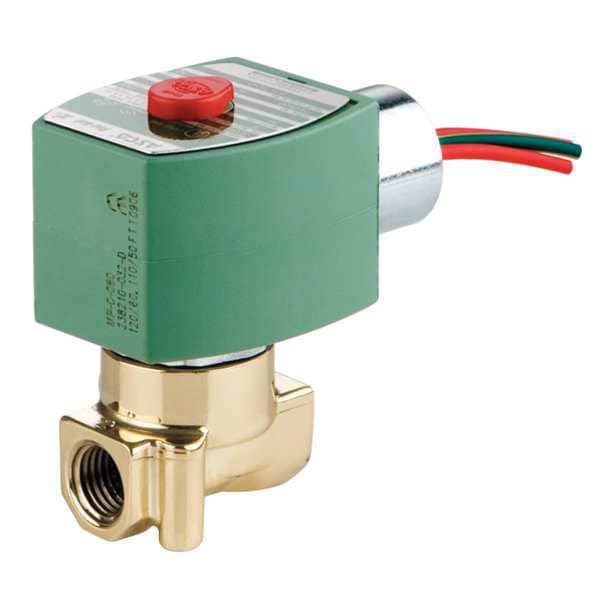

Asco Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 120V AC, High Flow, Brass 8262H021V - main

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 120V AC, High Flow, Brass

  • Mfr # 8262H021V

  • Zoro # G3602392

product price:  $105.95
/ea
Free Shipping & Returns

Key Features

For Media
Fuel Oil, Gas
Valve Ways
2-Way
Valve Starting Configuration
Normally Closed
Nominal Pipe Size
1/4 in
Inlet Connection Type
NPTF
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8262H021V
Zoro #
G3602392
UPC #
094714832392
Country of Origin
Mexico

Dimensions

Nominal Pipe Size
1/4 in
Overall Width
1-11/16 in
Overall Height
2-27/32 in
Overall Length
1-9/16 in
Center Line Pipe Center Size
2-19/32 in
Orifice Diameter
3/32 in

Details

For Media
Fuel Oil, Gas
Valve Ways
2-Way
Valve Starting Configuration
Normally Closed
Inlet Connection Type
NPTF
Outlet Connection Type
NPTF
Voltage
120V AC
Valve Type
High Flow
Operation Type
Direct Acting
Seal Material
FKM
Operating Pressure Differential - Maximum
500 psi Air/Inert Gas, 350 psi Fuel Oil, Light Oil, Water
Operating Pressure Differential - Minimum
0 psi Air/Inert Gas, Fuel Oil
Item
Solenoid Valve
Standards
CE, CSA, FM, UL Listed
Electrical Connections
1/2 in Conduit
Coil Enclosure
Without Junction Box, Watertight
Application
Boilers, Burners, Car Wash Equipment, Compressors, Dishwashing and Laundry Equipment, Food Processing, Pumps
Body Material
Brass
Coil Insulation Class
F
Ambient Temp. Range
5 Degrees to 131 Degrees F
Valve Design
2-Way/2-Position
NEMA Enclosure Rating
1, 2, 3, 3S, 4, 4X
Ambient Temperature - Minimum
-13 Degrees F
Operating Pressure Differential Fuel Oil - Maximum
350 psi
Wattage
9.1 W
Operating Pressure Differential Air/Inert Gas - Minimum
0 psi
Fluid Temperature - Maximum
210 Degrees F
Includes Seal
Yes
Operating Pressure Differential Hot Water - Maximum
Not Rated
Environmental Rating
Corrosive, Hazardous, Indoor, Outdoor
Operating Pressure Differential Water - Maximum
350 psi
Operating Pressure Differential Steam - Maximum
Not Rated
Includes Coil
Yes
Operating Pressure Differential Light Oil - Maximum
350 psi
Thread Type
NPT
Valve Positions
2-Position
Ambient Temperature - Maximum
131 Degrees F
Operating Pressure Differential Fuel Oil - Minimum
0 psi
Response Time
1 sec
Coefficient of Volume (Cv)
0.21
Operating Pressure Differential Air/Inert Gas - Maximum
500 psi
Frequency
60 Hz
Mounting Orientation
Horizontal or Vertical

Description

Solenoid Valve, Valve Ways 2-Way, Valve Starting Configuration Normally Closed, Valve Type High Flow, Nominal Pipe Size 1/4 in, Orifice Diameter 3/32 in, Body Material Brass, Coefficient of Volume (Cv) 0.21, Operating Pressure Differential Air/Inert Gas - Maximum 500 psi, Operating Pressure Differential Fuel Gas - Maximum Not Applicable, Seal Material FKM, Voltage 110V AC, 120V AC, Operating Pressure Differential Fuel Oil - Maximum 350 psi, Coil Enclosure Without Junction Box, Watertight
