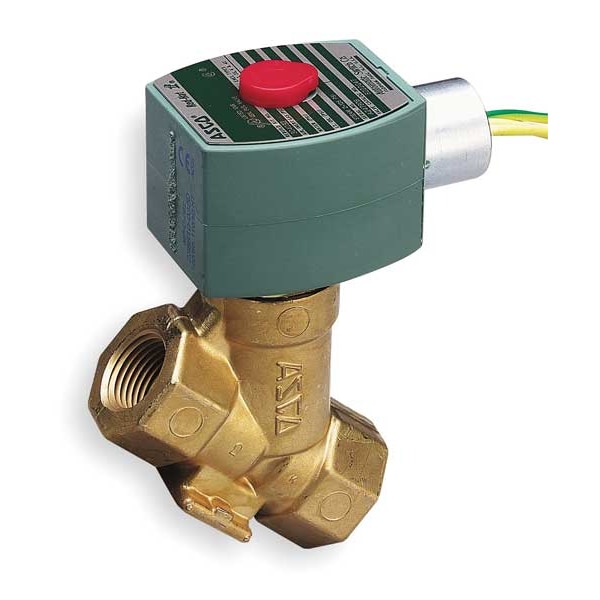

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 120V AC, High Temperature

  • Mfr # 8222G070

  • Zoro # G1103663

product price:
$
323.99
/ea
Free Shipping & Returns

Key Features

For Media
Steam
Valve Ways
2-Way
Valve Starting Configuration
Normally Closed
Nominal Pipe Size
1/4 in
Inlet Connection Type
NPTF
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
8222G070
Zoro #
G1103663
UPC #
094703442052
Country of Origin
United States
For Media
Steam
Valve Ways
2-Way
Valve Starting Configuration
Normally Closed
Inlet Connection Type
NPTF
Outlet Connection Type
NPTF
Voltage
120V AC
Valve Type
High Temperature
Operation Type
Pilot Operated
Seal Material
PTFE
Operating Pressure Differential - Maximum
135 psi Steam
Operating Pressure Differential - Minimum
1 psi Water
Item
Solenoid Valve
Coil Insulation Class
H
Coil Enclosure
Watertight
Max. Fluid Temp. Steam
353 Degrees F
Body Material
Brass
Ambient Temp. Range
125 Degrees F
Electrical Connections
1/2" Conduit w/18" Leads
Valve Design
Diaphragm
Standards
CSA, UL Listed
Application
Autoclave, Commercial Laundry, Kitchen Equipment, Molding, Steam Sterilizer
Ambient Temperature - Minimum
32 Degrees F
NEMA Enclosure Rating
1, 2, 3, 3S, 4, 4X
Valve Positions
2-Position
Environmental Rating
Hazardous, Indoor, Outdoor, Washdown
Frequency
50 Hz, 60 Hz
Fluid Temperature - Maximum
353 Degrees F
Operating Pressure Differential Water - Minimum
1 psi
Thread Type
NPT
Coefficient of Volume (Cv)
1.2
Operating Pressure Differential Light Oil - Maximum
Not Rated
Operating Pressure Differential Hot Water - Maximum
Not Rated
Operating Pressure Differential Water - Maximum
Not Rated
Includes Coil
Yes
Wattage
6.1 W
Operating Pressure Differential Air/Inert Gas - Maximum
Not Rated
Valve Body Style
Y-Shape
Ambient Temperature - Maximum
125 Degrees F
Operating Pressure Differential Steam - Maximum
135 psi

Description

Solenoid Valve, Valve Ways 2-Way, Valve Starting Configuration Normally Closed, Valve Type High Temperature, Nominal Pipe Size 1/4 in, Orifice Diameter 3/8 in, Body Material Brass, Coefficient of Volume (Cv) 1.2, Operating Pressure Differential Air/Inert Gas - Maximum Not Rated, Operating Pressure Differential Fuel Gas - Maximum Not Applicable, Seal Material PTFE, Voltage 110V AC, 120V AC, Operating Pressure Differential Fuel Oil - Maximum Not Applicable, Coil Enclosure Watertight
