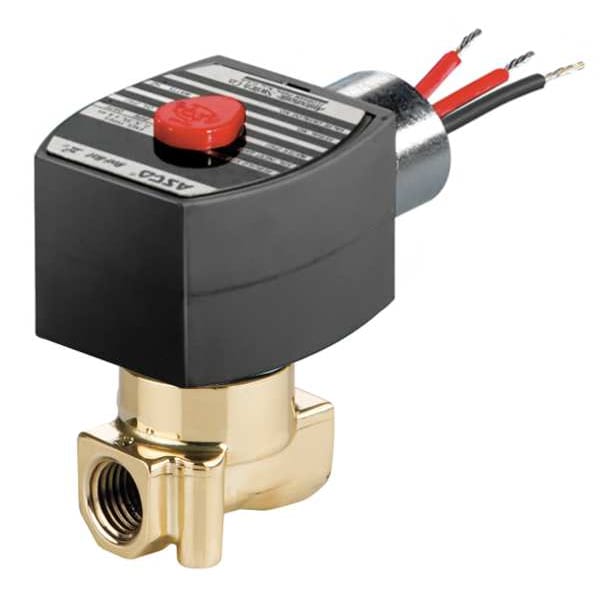

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/8 in Pipe Size, 120V AC, High Flow, Brass
Mfr # EF8262H014
Zoro # G3954447
product price:
$
176.99
/ea
Free Shipping & Returns
Key Features
For Media
Air, Inert Gas, Light Oil, Water
Valve Ways
2-Way
Valve Starting Configuration
Normally Closed
Nominal Pipe Size
1/8 in
Inlet Connection Type
NPTF
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- EF8262H014
- Zoro #
- G3954447
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Nominal Pipe Size
- 1/8 in
- Overall Length
- 1-3/16 in
- Center Line Pipe Center Size
- 2-1/2 in
- Overall Width
- 1-11/16 in
- Overall Height
- 2-27/32 in
- Orifice Diameter
- 3/32 in
- Wire Rope Length
- 1 3/16 in
Description
The ASCO EF8262H014 is a 2-way, 2-position direct acting solenoid valve with a normally closed configuration. It features a brass body and NBR seal material, designed to control the flow of air, inert gas, light oil, and water. The valve is supplied with a coil enclosed in a housing with explosion-proof and watertight construction, and operates at 120V AC with a power consumption of 6.1 watts. It is suitable for installation in either horizontal or vertical orientations and is rated for ambient temperatures ranging from -13°F to 131°F, with a maximum fluid temperature of 180°F.
Key Features:
- Valve Design: 2-Way/2-Position, Normally Closed
- Operation Type: Direct Acting
- Body Material: Brass
- Seal Material: NBR
- Media Compatibility: Air, Inert Gas, Light Oil, Water
- Electrical: 120V AC, 60 Hz, 6.1 W power consumption
- Coil Enclosure: Explosion Proof, Watertight, includes coil
- Electrical Connection: 1/2 in Conduit with 18 in Leads
- Mounting Orientation: Horizontal or Vertical
- Maximum Ambient Temperature: 131°F
- Minimum Ambient Temperature: -13°F
- Maximum Fluid Temperature: 180°F
- Operating Pressure Differential Maximums: 370 psi Air/Inert Gas, 190 psi Light Oil, 330 psi Water
- Minimum Operating Pressure Differential: 0 psi for Air/Inert Gas, Light Oil, and Water
- Orifice Diameter: 3/32 in
- Nominal Pipe Size: 1/8 in
- Connection Type: NPTF inlet and outlet
- Dimensions (H × L × W): 2-27/32 in × 1-3/16 in × 1-11/16 in
- Response Time: 1 sec
- Certifications: CE, CSA, FM, UL Listed
