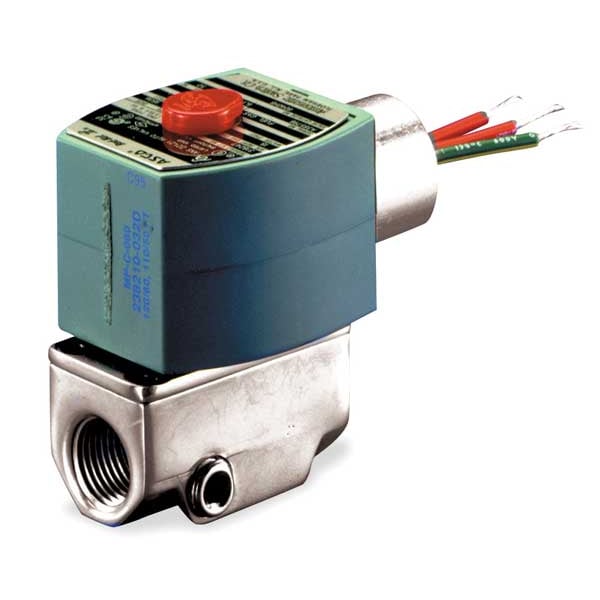

Asco Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/8 in Pipe Size, 120V AC, Poppet, Test Port 8040H006 - main

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/8 in Pipe Size, 120V AC, Poppet, Test Port

  • Mfr # 8040H006

  • Zoro # G2070871

product price:  $137.99
/ea
Free Shipping & Returns

Key Features

For Media
Fuel Oil, Gas
Valve Ways
2-Way
Valve Starting Configuration
Normally Closed
Nominal Pipe Size
1/8 in
Inlet Connection Type
NPTF
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
8040H006
Zoro #
G2070871
UPC #
-
Country of Origin
Mexico

Dimensions

Nominal Pipe Size
1/8 in
Center Line Pipe Center Size
2-5/16 in
Overall Width
1-11/16 in
Overall Length
2 in
Overall Height
2-3/4 in
Orifice Diameter
5/16 in

Details

For Media
Fuel Oil, Gas
Valve Ways
2-Way
Valve Starting Configuration
Normally Closed
Inlet Connection Type
NPTF
Outlet Connection Type
NPTF
Voltage
120V AC
Valve Type
Poppet, Test Port
Operation Type
Direct Acting
Seal Material
NBR
Operating Pressure Differential - Maximum
15 psi Air/Inert Gas, Water
Operating Pressure Differential - Minimum
0 psi
Item
Solenoid Valve
Application
For Gas Pilot Control of Commercial and Industrial Gas Burners
Electrical Connections
18 in Leads
Valve Design
2-Way/2-Position
Body Material
Aluminum
BtuH
53,700 BtuH
Standards
CSA for Safety Shutoff, FM, UL
Coil Insulation Class
F
Ambient Temp. Range
-40 Degrees to 125 Degrees F
Coil Enclosure
General Purpose, Without Junction Box, Watertight
Operating Pressure Differential Light Oil - Maximum
Not Rated
Operating Pressure Differential Hot Water - Maximum
Not Rated
Fluid Temperature - Maximum
125°F
NEMA Enclosure Rating
1, 2, 3, 3S, 4, 4X
Thread Type
NPT
Includes Seal
Yes
Gas Capacity
53,700 BtuH
Operating Pressure Differential Steam - Maximum
Not Rated
Wattage
6.1 W
Coefficient of Volume (Cv)
1
Valve Positions
2-Position
Operating Pressure Differential Water - Maximum
15 psi
Frequency
50 Hz, 60 Hz
Environmental Rating
Indoor, Outdoor
Operating Pressure Differential Air/Inert Gas - Maximum
15 psi
Mounting Orientation
Horizontal or Vertical
Includes Coil
Yes

Description

Solenoid Valve, Valve Ways 2-Way, Valve Starting Configuration Normally Closed, Valve Type Poppet, Nominal Pipe Size 1/8 in, Orifice Diameter 5/16 in, Body Material Aluminum, Coefficient of Volume (Cv) 1, Operating Pressure Differential Air/Inert Gas - Maximum 15 psi, Operating Pressure Differential Fuel Gas - Maximum Not Applicable, Seal Material NBR, Voltage 110V AC, 120V AC, Operating Pressure Differential Fuel Oil - Maximum Not Applicable, Coil Enclosure Without Junction Box, Watertight
