Shop ASCO

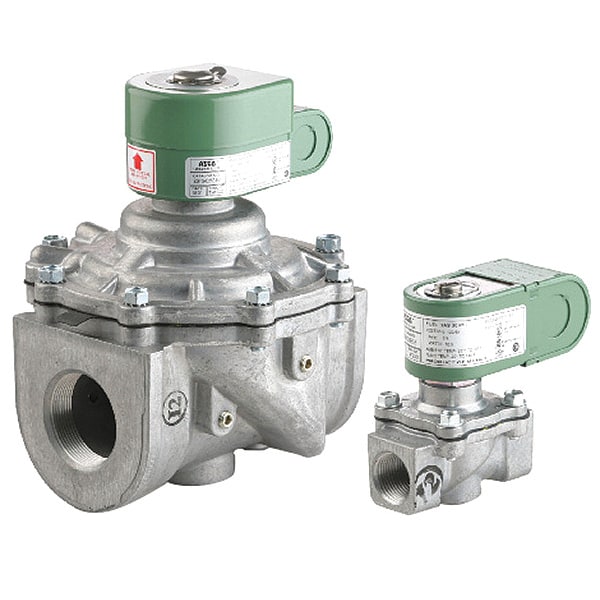

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 2 in Pipe Size, 120/60V AC, High Pressure, NBR

  • Mfr # S261SH02N3JK4

  • Zoro # G6142444

product price:
$
1,089.99
/ea
Free Shipping & Returns

Key Features

For Media
Fuel Oil, Gas
Valve Ways
2-Way
Valve Starting Configuration
Normally Closed
Nominal Pipe Size
2 in
Inlet Connection Type
NPTF
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
S261SH02N3JK4
Zoro #
G6142444
UPC #
-
Country of Origin
United States
For Media
Fuel Oil, Gas
Valve Ways
2-Way
Valve Starting Configuration
Normally Closed
Inlet Connection Type
NPTF
Outlet Connection Type
NPTF
Voltage
120/60V AC
Valve Type
High Pressure
Seal Material
NBR
Operating Pressure Differential - Maximum
25 psi Air/Inert Gas, Water
Operating Pressure Differential - Minimum
0 psi
Item
Solenoid Valve
Coil Enclosure
With Junction Box
Coil Insulation Class
F
Standards
CSA, FM, UL Listed
Electrical Connections
7/8 in Knockouts
BtuH
4,487,000 BtuH
Body Material
Aluminum
Application
For Control of Commercial and Industrial Gas Burners
Ambient Temp. Range
-40 Degrees to 160 Degrees F
Response Time
1 sec
Operating Pressure Differential Light Oil - Maximum
Not Rated
Environmental Rating
Indoor, Outdoor
Ambient Temperature - Minimum
-20 Degrees F
Includes Seal
Yes
Mounting Orientation
Vertical
Fluid Temperature - Maximum
140 Degrees F
Valve Positions
2-Position
Ambient Temperature - Maximum
170 Degrees F
Frequency
60 Hz
Operating Pressure Differential Water - Maximum
Not Rated
Operating Pressure Differential Air/Inert Gas - Maximum
25 psi
Operating Pressure Differential Hot Water - Maximum
Not Rated
Includes Coil
Yes
Gas Capacity
4,487,000 BtuH
Wattage
28.2 W
Coefficient of Volume (Cv)
83
NEMA Enclosure Rating
1
Operating Pressure Differential Steam - Maximum
Not Rated

Description

Solenoid Valve, Valve Ways 2-Way, Valve Starting Configuration Normally Closed, Valve Type High Pressure, Nominal Pipe Size 2 in, Orifice Diameter 3 in, Body Material Aluminum, Coefficient of Volume (Cv) 83, Operating Pressure Differential Air/Inert Gas - Maximum 25 psi, Operating Pressure Differential Fuel Gas - Maximum Not Applicable, Seal Material NBR, Voltage 120V AC, Operating Pressure Differential Fuel Oil - Maximum Not Applicable, Coil Enclosure With Junction Box, For Media Fuel Gas
