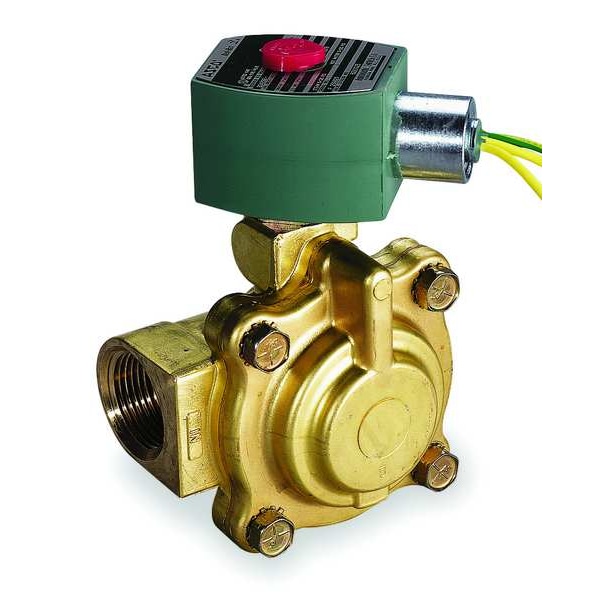

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 2 in Pipe Size, 120V AC, Diaphragm, Piston
Mfr # 8220G031
Zoro # G3430786
Key Features
Specifications
Product Information
- MFR #
- 8220G031
- Zoro #
- G3430786
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Nominal Pipe Size
- 2 in
- Center Line Pipe Center Size
- 4-3/4 in
- Overall Height
- 7-1/2 in
- Overall Length
- 5-1/16 in
- Overall Width
- 4-23/32 in
- Orifice Diameter
- 1-3/4 in
- Wire Rope Length
- 5 1/16 in
- Length
- 5 1/16 in
Description
The ASCO 8220G031 Solenoid Valve is an electromechanical, pilot-operated valve designed for controlling the flow of hot water and steam. It features a normally closed, 2-position diaphragm design with a 2-inch nominal pipe size and a 1-3/4 inch orifice diameter. The valve body is made of brass, and it includes a PTFE seal. Rated for ambient temperature range: 14–140°F and rated for maximum fluid temperatures: 210°F for hot water; 353°F for steam. This valve operates at 120V AC with a coil insulation class H, using a 60 Hz frequency, and includes the coil and seals necessary for installation.
Key Features:
- Valve Design: Pilot operated, diaphragm type
- Valve Positions: 2-position, normally closed
- Nominal Pipe Size: 2 in with NPTF inlet and outlet connection types
- Orifice Diameter: 1-3/4 in
- Body Material: Brass with PTFE seal material
- Operating Pressure Differential: 5 to 150 psi for hot water; 5 to 125 psi for steam
- Temperature Ratings: Ambient 14 to 140°F; maximum fluid temperatures: 210°F for hot water; 353°F for steam
- Electrical: 120V AC, 60 Hz, 10.1 W wattage, coil enclosure watertight without junction box, electrical connections via 1/2 in conduit with 18 in leads
- Dimensions: Overall height 7-1/2 in, length 5-1/16 in, width 4-23/32 in
- Standards: CSA and UL Listed
