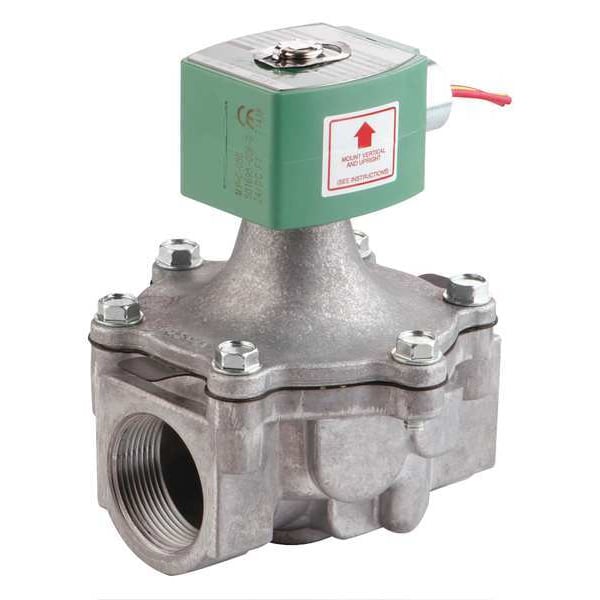

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 2 in Pipe Size, 24V DC, High Flow, Aluminum
Mfr # 8215G080-24/DC
Zoro # G9993331
Key Features
Specifications
Product Information
- MFR #
- 8215G080-24/DC
- Zoro #
- G9993331
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Nominal Pipe Size
- 2 in
- Center Line Pipe Center Size
- 5-13/16 in
- Overall Height
- 7-5/16 in
- Overall Width
- 6-13/32 in
- Overall Length
- 6-1/8 in
- Orifice Diameter
- 2-3/32 in
- Wire Rope Length
- 6 1/8 in
- Length
- 6 1/8 in
Description
The ASCO 8215G080-24/DC is a direct-acting, 2-way/2-position solenoid valve designed for controlling fuel gas flow in commercial and industrial gas burners. It features a normally closed starting configuration and includes the coil and sealing components necessary for operation. The valve body is made of aluminum and it operates at 24 V DC with a wattage of 15.8 W. Media compatibility: Fuel Oil, Gas; fluid temperatures up to 104°F and ambient temperatures ranging from 14°F to 140°F. Flow capacity: Cv 60; Orifice diameter: 2-3/32 in enables controlled on-off operation.
Key Features:
- Valve Design: 2-Way/2-Position, normally closed
- Valve Type: High Flow
- Operation Type: Direct Acting
- Media Compatibility: Fuel Oil, Gas
- Body Material: Aluminum
- Orifice Diameter: 2-3/32 in
- Nominal Pipe Size: 2 in
- Inlet and Outlet Connection Type: NPTF with NPT thread type
- Maximum Operating Pressure Differential: 15 psi for Air/Inert Gas and Water
- Electrical: 24 V DC, 15.8 W coil wattage, 60 Hz frequency
- Coil Enclosure: Watertight with Junction Box
- Electrical Connections: 1/2 in Conduit with 18 in Leads
- Coil Insulation Class: F
- Seals: Includes NBR seal material
- Response Time: 120 msec
- Dimensions (L x W x H): 6-1/8 in x 6-13/32 in x 7-5/16 in
- IP Rating: IP65
- NEMA Enclosure Ratings: 1, 2, 3, 3S, 4, 4X
- Includes coil and seal
- Certified to UL and CSA standards for safety shutoff
