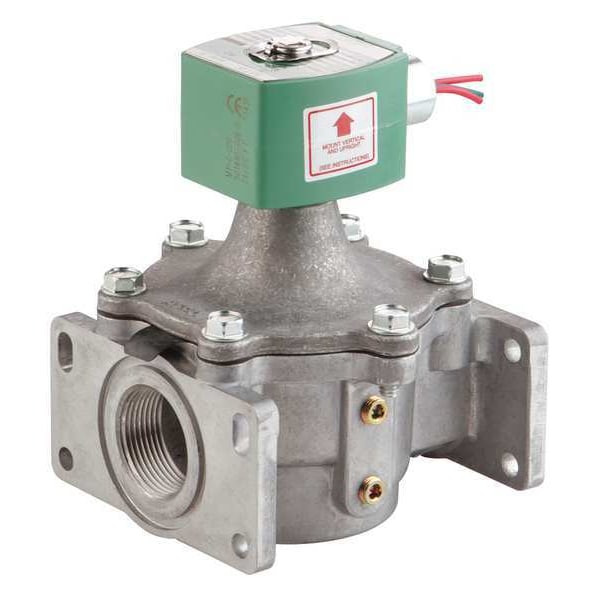

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 2 in Pipe Size, 24V DC, High Flow Gas Shut Off
Mfr # 8214G281-24/DC
Zoro # G9993392
Key Features
Specifications
Product Information
- MFR #
- 8214G281-24/DC
- Zoro #
- G9993392
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Nominal Pipe Size
- 2 in
- Center Line Pipe Center Size
- 5-13/16 in
- Overall Height
- 7-3/4 in
- Overall Length
- 6-1/8 in
- Overall Width
- 6-5/16 in
- Orifice Diameter
- 2-3/32 in
- Wire Rope Length
- 6 1/8 in
- Length
- 6 1/8 in
Description
The ASCO 8214G281-24/DC is a 2-way, 2-position solenoid valve designed for on-off control of fuel gas in commercial and industrial gas burners. It features a pilot-operated double solenoid actuator and a normally closed valve starting configuration. The valve body is made from aluminum and includes seals constructed from NBR. It is suitable for fluids including fuel oil and gas, with a maximum fluid temperature of 125°F. The valve is designed for vertical mounting orientation and has NPTF inlet and outlet connections sized for 2-inch nominal pipe size. Its orifice diameter measures 2-3/32 inches, and it has a flow coefficient (Cv) of 55. The valve operates on 24V DC with a coil wattage of 35.1 W and includes the coil and sealing components.
Key Features:
- Actuator Type: Double solenoid with pilot-operated action
- Valve Design: 2-Way/2-Position, Normally Closed starting configuration
- Body Material: Aluminum with NBR seal material
- Media Compatibility: Fuel oil and gas
- Temperature Ratings: Ambient -40°F to 140°F; fluid maximum 125°F
- Pressure Differential: Maximum 5 psi for air/inert gas and water; minimum 0 psi
- Connections: 2 in nominal pipe size, Inlet and Outlet thread type NPTF
- Electrical: 24V DC, 35.1 W coil wattage, Class F coil insulation
- Environmental Rating: Suitable for indoor and outdoor use; no hazardous-location certification indicated.
- Coil Enclosure: General purpose, watertight, with junction box
- Electrical Connections: 1/2 in conduit
- Mounting Orientation: Vertical installation
- Dimensions: Overall length 6-1/8 in; width 6-5/16 in; height 7-3/4 in
- Response Time: Approximately 1 second
- Included Components: Coil and sealing components supplied
- Standards: UL and CSA compliance.
