Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/4 in Pipe Size, 120V AC, High Pressure, Brass

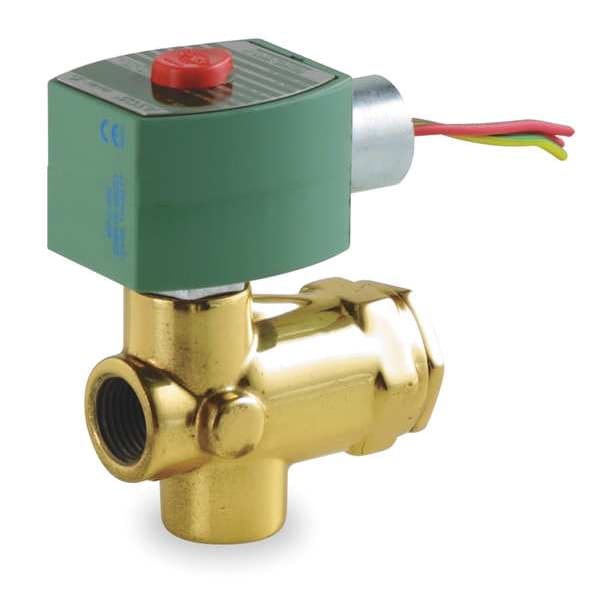

The ASCO 8223G005 is a 2-Way/2-Position, Normally Closed solenoid valve designed for pilot-operated control of air, inert gas, light oil, and water. Constructed with a brass valve body and NBR seals. Remote actuation is automated for regulated flow. Ambient operating temperature range is 14°F to 140°F; maximum fluid temperature is 200°F. It features NPTF inlet and outlet connections with a nominal pipe size of 3/4 inch and an orifice diameter of 3/4 inch. The valve is compatible with a maximum operating pressure differential of 750 psi and requires a minimum pressure differential of 25 psi across air, inert gas, light oil, and water media. Environmental rating: IP66; CSA certification.

Key Features:

• Valve Design: 2-Way/2-Position with Normally Closed starting configuration
• Operation Type: Pilot Operated
• Body Material: Brass
• Seal Material: NBR
• Nominal Pipe Size: 3/4 in; Orifice Diameter: 3/4 in; Center Line Pipe Size: 3-1/4 in
• Maximum Operating Pressure Differential: 750 psi (Air/Inert Gas, Light Oil, Water)
• Minimum Operating Pressure Differential: 25 psi (Air/Inert Gas, Light Oil, Water)
• Voltage: 120V AC; Wattage: 17.1 W
• Electrical Connections: 1/2 in Conduit with 18 in Leads
• Coil Enclosure: Without Junction Box, Watertight; Coil Insulation Class: F; Includes Coil: Yes
• Environmental Rating: IP66; CSA Certification; NEMA Enclosure Rating: 1, 2, 3, 3S, 4, 4X
• Dimensions: Overall Height 5 in; Length 3-5/8 in; Width 2 in
• Valve Type: High Pressure; Valve Ways: 2-Way; Valve Positions: 2-Position
• Includes Seal: Yes
• Thread Type: NPT; Inlet and Outlet Connection Type: NPTF
