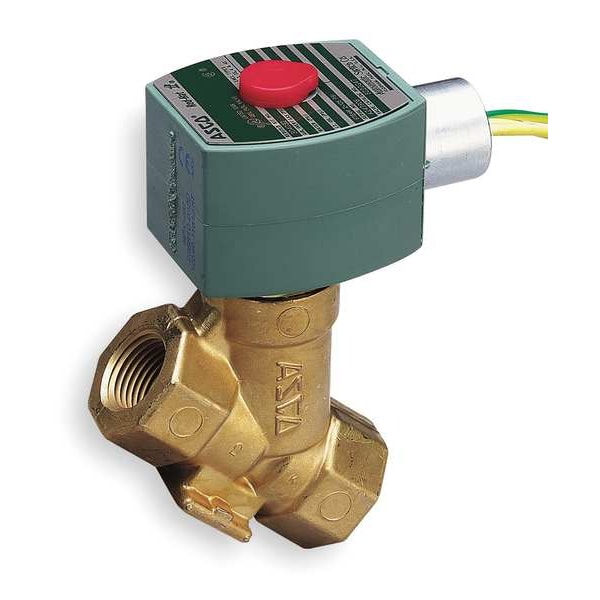

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/4 in Pipe Size, 120V AC, High Temperature
Mfr # 8222G049
Zoro # G2453385
Key Features
Specifications
Product Information
- MFR #
- 8222G049
- Zoro #
- G2453385
- UPC #
- 094700472816
- Country of Origin
- Mexico
Dimensions
- Nominal Pipe Size
- 3/4 in
- Center Line Pipe Center Size
- 4-1/64 in
- Overall Height
- 4-13/16 in
- Overall Width
- 1-15/16 in
- Overall Length
- 2-3/4 in
- Orifice Diameter
- 1/2 in
- Wire Rope Length
- 2 3/4 in
Description
The ASCO 8222G049 is a pilot operated, normally closed solenoid valve suitable for steam flow control in systems operating within ambient temperatures 32°F–125°F and steam fluid temperatures up to 353°F. Constructed with a brass body and PTFE seals, this valve supports operation within ambient temperatures ranging from 32°F to 125°F and fluid temperatures up to 353°F for steam. Automation-capable control of steam flow via external signals; 3/4 in nominal pipe size connection; 120V AC coil operation, featuring NPTF inlet and outlet ports and a Y-shape diaphragm valve design with a 2-position, 2-way configuration.
Key Features:
- Valve Body Material: Brass
- Seal Material: PTFE
- Valve Type: High Temperature
- Operation Type: Pilot Operated
- Valve Starting Configuration: Normally Closed
- Valve Ways: 2-Way
- Valve Positions: 2-Position
- Nominal Pipe Size: 3/4 in
- Orifice Diameter: 1/2 in
- Center Line Pipe Center Size: 4-1/64 in
- Maximum Ambient Temperature: 125°F
- Minimum Ambient Temperature: 32°F
- Maximum Fluid Temperature (Steam): 353°F
- Maximum Operating Pressure Differential (Steam): 135 psi
- Minimum Operating Pressure Differential (Water): 2 psi
- Coil Enclosure: Watertight; junction box not included
- Coil Insulation Class: H
- Electrical Connections: 1/2 in Conduit with 18 in Leads
- Frequency: 50 Hz, 60 Hz
- Includes Coil: Yes
- Environmental Rating: Indoor/outdoor washdown environments; hazardous-location suitability not specified.
- Standards: CSA, UL Listed
- NEMA Enclosure Rating: 1, 2, 3, 3S, 4, 4X
- Dimensions (L x W x H): 2-3/4 in x 1-15/16 in x 4-13/16 in
- Voltage: 120V AC
- Wattage: 10.1 W
