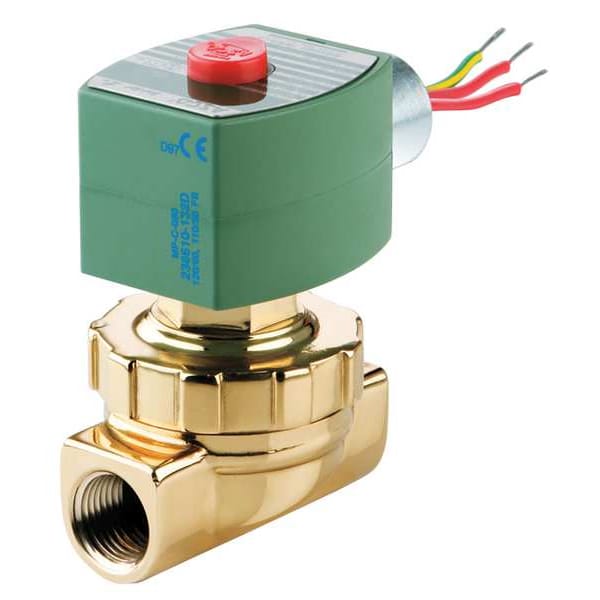

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/8 in Pipe Size, 120V AC, Compact, Brass, PTFE

  • Mfr # 8263H305

  • Zoro # G3611596

product price:
$
259.99
/ea
Free Shipping & Returns

Key Features

For Media
Hot Water, Steam
Valve Ways
2-Way
Valve Starting Configuration
Normally Closed
Inlet Connection Type
NPTF
Outlet Connection Type
NPTF
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
8263H305
Zoro #
G3611596
UPC #
094714832439
Country of Origin
United States

Dimensions

Nominal Pipe Size
3/8 in
Overall Height
3-3/32 in
Overall Length
1-7/8 in
Overall Width
1-11/16 in
Center Line Pipe Center Size
2-9/16 in
Orifice Diameter
5/32 in
Wire Rope Length
1 7/8 in

Details

For Media
Hot Water, Steam
Valve Ways
2-Way
Valve Starting Configuration
Normally Closed
Inlet Connection Type
NPTF
Outlet Connection Type
NPTF
Voltage
120V AC
Valve Type
Compact
Operation Type
Direct Acting
Seal Material
PTFE
Operating Pressure Differential - Maximum
110 psi Steam, 200 psi Hot Water
Operating Pressure Differential - Minimum
0 psi Hot Water, Steam
Item
Solenoid Valve
Max. Fluid Temp. Steam
344 Degrees F
Valve Design
2-Way/2-Position
Ambient Temp. Range
131 Degrees F
Coil Enclosure
Without Junction Box, Watertight
Electrical Connections
1/2" Conduit w/18" Leads
Coil Insulation Class
H
Max. Fluid Temp. Hot Water
210 Degrees F
Body Material
Brass
Application
Boilers, Burners, Car Wash Equipment, Compressors, Dishwashing and Laundry Equipment, Food Processing, Pumps
Standards
CSA, UL Listed
Wattage
10.1 W
Environmental Rating
Corrosive, Hazardous, Indoor, Outdoor
Includes Seal
Yes
Ambient Temperature - Maximum
131 Degrees F
Operating Pressure Differential Air/Inert Gas - Maximum
Not Rated
Mounting Orientation
Horizontal or Vertical
Includes Coil
Yes
Thread Type
NPT
Operating Pressure Differential Steam - Maximum
110 psi
Operating Pressure Differential Water - Maximum
Not Rated
Operating Pressure Differential Hot Water - Maximum
200 psi
NEMA Enclosure Rating
1, 2, 3, 3S, 4, 4X
Ambient Temperature - Minimum
-13 Degrees F
Frequency
50 Hz
Operating Pressure Differential Light Oil - Maximum
Not Rated
Operating Pressure Differential Hot Water - Minimum
0 psi
Valve Positions
2-Position
Coefficient of Volume (Cv)
0.52
Operating Pressure Differential Steam - Minimum
0 psi
Fluid Temperature - Maximum
344°F Steam, 210°F Water

Description

Solenoid Valve, Valve Ways 2-Way, Valve Starting Configuration Normally Closed, Valve Type Compact, Nominal Pipe Size 3/8 in, Orifice Diameter 5/32 in, Body Material Brass, Coefficient of Volume (Cv) 0.52, Operating Pressure Differential Air/Inert Gas - Maximum Not Rated, Operating Pressure Differential Fuel Gas - Maximum Not Applicable, Seal Material PTFE, Voltage 110V AC, 120V AC, Operating Pressure Differential Fuel Oil - Maximum Not Applicable, Coil Enclosure Without Junction Box, Watertight
