  11. Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/8 in Pipe Size, 120V AC, High Flow, Brass

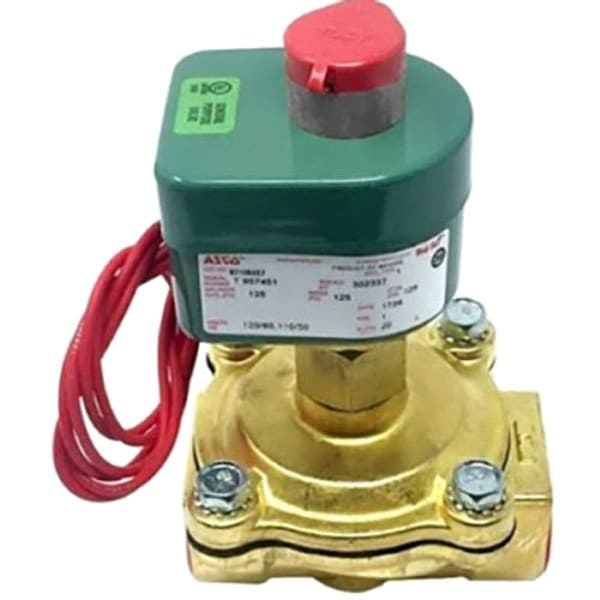

Asco Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/8 in Pipe Size, 120V AC, High Flow, Brass 8210B021 - main

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/8 in Pipe Size, 120V AC, High Flow, Brass

  • Mfr # 8210B021

  • Zoro # G3048832

product price: $235.99
/ea
Free Shipping & Returns

Key Features

For Media
Air, Inert Gas, Water
Valve Ways
2-Way
Valve Starting Configuration
Normally Closed
Nominal Pipe Size
3/8 in
Inlet Connection Type
NPT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8210B021
Zoro #
G3048832
UPC #
094701496538
Country of Origin
Mexico

Dimensions

Nominal Pipe Size
3/8 in
Overall Height
2-15/16 in
Overall Width
2 in
Overall Length
1-11/16 in
Center Line Pipe Center Size
2-1/2 in
Orifice Diameter
5/16 in

Details

For Media
Air, Inert Gas, Water
Valve Ways
2-Way
Valve Starting Configuration
Normally Closed
Inlet Connection Type
NPT
Outlet Connection Type
NPT
Voltage
120V AC
Valve Type
High Flow
Operation Type
Pilot Operated
Seal Material
NBR
Operating Pressure Differential - Maximum
125 psi Air/Inert Gas, Water
Operating Pressure Differential - Minimum
5 psi Air/Inert Gas, Water
Item
Solenoid Valve
Electrical Connections
1/2 in Conduit Hub
IP Rating
66
Coil Insulation Class
F
Coil Enclosure
Without Junction Box, Watertight
Valve Design
2-Way/2-Position
Body Material
Brass
Standards
UL Listed
Application
Air Compressors, Car Wash Equipment, Industrial Water Control, Laundry Equipment, Pumps
Environmental Rating
Corrosive, Hazardous, Indoor, Outdoor
Operating Pressure Differential Steam - Maximum
Not Rated
Operating Pressure Differential Water - Minimum
5 psi
Fluid Temperature - Maximum
180°F
Thread Type
BSPP, NPT
Coefficient of Volume (Cv)
1.2
Ambient Temperature - Minimum
14 Degrees F
Response Time
1 sec
Ambient Temperature - Maximum
140 Degrees F
NEMA Enclosure Rating
1, 2, 3, 3S, 4, 4X
Frequency
50 Hz, 60 Hz
Valve Positions
2-Position
Operating Pressure Differential Hot Water - Maximum
Not Rated
Operating Pressure Differential Water - Maximum
125 psi
Includes Coil
Yes
Operating Pressure Differential Light Oil - Maximum
Not Rated
Operating Pressure Differential Air/Inert Gas - Minimum
5 psi
Includes Seal
Yes
Mounting Orientation
Vertical
Operating Pressure Differential Air/Inert Gas - Maximum
125 psi
Wattage
6.5 W

Description

The ASCO 8210B021 is a pilot-operated, 2-way/2-position solenoid valve with a normally closed starting configuration. It features a brass valve body and controls flow of air, inert gas, and water within an operating differential pressure range of 5 to 125 psi. The valve includes the required coil and sealing components, and operates on 120V AC; 50/60 Hz. Mounting orientation: Vertical; Environmental rating: Corrosive, Hazardous, Indoor, Outdoor. Orifice diameter: 5/16 inch; Cv: 1.2.

Key Features:

  • Valve Design: 2-Way/2-Position, Pilot Operated, Normally Closed
  • Body Material: Brass
  • Nominal Pipe Size: 3/8 in, with NPT inlet and outlet connections
  • Operating pressure range: 5 to 125 psi for air, inert gas, and water
  • Media Compatibility: Air, Inert Gas, Water
  • Electrical Specifications: 120V AC, 6.5 W coil wattage, 1/2 in conduit hub electrical connections
  • Environmental rating: Corrosive; Hazardous; Indoor; Outdoor
  • Temperature Ratings: Ambient 14 to 140°F; fluid media up to 180°F
  • Physical Dimensions: Overall Length 1-11/16 in; Width 2 in; Height 2-15/16 in
  • Coil Enclosure: Watertight; Coil insulation class: F
  • Response Time: 1 second
  • Seal Material: NBR
  • IP Rating: 66
  • Includes: Coil and seal
  • Standards: UL Listed
  • Mounting Orientation: Vertical
