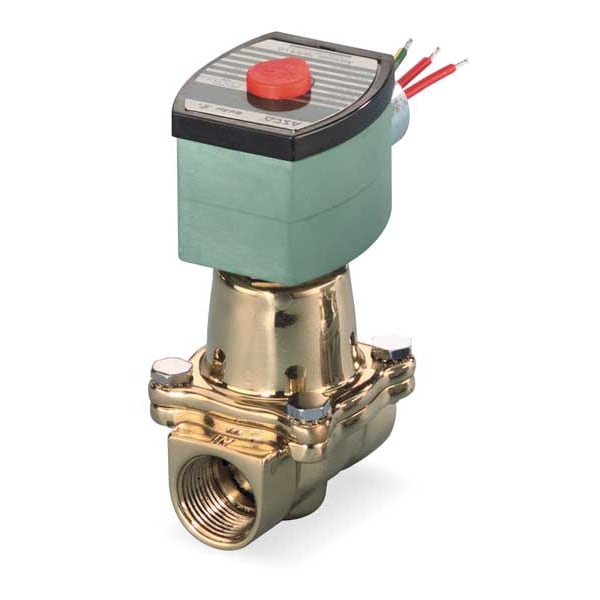

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/8 in Pipe Size, 120V AC, High Temperature

  • Mfr # 8222G093

  • Zoro # G1766685

product price:
$
475.99
/ea
Free Shipping & Returns

Key Features

For Media
Hot Water, Steam
Valve Ways
2-Way
Valve Starting Configuration
Normally Closed
Nominal Pipe Size
3/8 in
Inlet Connection Type
NPTF
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
8222G093
Zoro #
G1766685
UPC #
094706061809
Country of Origin
United States

Dimensions

Nominal Pipe Size
3/8 in
Overall Height
3-27/32 in
Overall Width
2-5/16 in
Overall Length
2-3/4 in
Center Line Pipe Center Size
3-9/32 in
Orifice Diameter
5/8 in
Wire Rope Length
2 3/4 in
Length
2 3/4 in

Details

For Media
Hot Water, Steam
Valve Ways
2-Way
Valve Starting Configuration
Normally Closed
Inlet Connection Type
NPTF
Outlet Connection Type
NPTF
Voltage
120V AC
Valve Type
High Temperature
Operation Type
Pilot Operated
Seal Material
PTFE
Operating Pressure Differential - Maximum
150 psi Hot Water, 125 psi Steam
Operating Pressure Differential - Minimum
1 psi
Item
Solenoid Valve
Valve Design
Diaphragm
Ambient Temp. Range
125 Degrees F
Max. Fluid Temp. Steam
353 Degrees F
Coil Insulation Class
H
Max. Fluid Temp. Hot Water
210 Degrees F
Body Material
Brass
Application
Autoclave, Commercial Laundry, Kitchen Equipment, Molding, Steam Sterilizer
Coil Enclosure
Watertight
Standards
CSA, UL Listed
Environmental Rating
Hazardous, Indoor, Outdoor, Washdown
Operating Pressure Differential Steam - Maximum
125 psi
Operating Pressure Differential Water - Maximum
Not Rated
Frequency
60 Hz
Operating Pressure Differential Air/Inert Gas - Maximum
Not Rated
Coefficient of Volume (Cv)
3
Wattage
10.1 W
Valve Body Style
Y-Shape
Valve Positions
2-Position
Operating Pressure Differential Hot Water - Maximum
150 psi
Includes Coil
Yes
Thread Type
NPT
Ambient Temperature - Maximum
125 Degrees F
Operating Pressure Differential Light Oil - Maximum
Not Rated
Fluid Temperature - Maximum
353 Degrees F
Ambient Temperature - Minimum
32 Degrees F

Description

The ASCO - 8222G093 is a 2-way, 2-position, normally closed solenoid valve rated for operation with hot water and steam within the specified maximum fluid temperatures (210°F for water, 353°F for steam). It features a brass valve body with a diaphragm valve design and pilot-operated actuation. The valve is rated for hot water up to 210°F and steam up to 353°F. It includes a coil rated for 120V AC at 60 Hz with a watertight enclosure and Class F insulation. The valve is rated for use with hot water and steam within the specified temperature and pressure ranges (210°F water; 353°F steam; 150 psi hot water; 125 psi steam).

Key Features:

  • Valve Body: Brass construction with Y-shape design
  • Valve Type: High Temperature diaphragm, pilot-operated
  • Valve Configuration: 2-Way, 2-Position, Normally Closed
  • Fluid Media: Hot water and steam
  • Maximum Fluid Temperatures: The valve is rated for hot water up to 210°F and steam up to 353°F
  • Operating Pressure Differential: 150 psi hot water, 125 psi steam
  • Orifice Diameter: 5/8 in
  • Connections: Inlet and outlet NPTF threaded, nominal pipe size 3/8 in
  • Coil: Included 120V AC, 60 Hz, 10.1 W, Class F insulation, watertight enclosure
  • Ambient Temperature Range: 32°F to 125°F
  • Seal Material: PTFE
  • Dimensions: 2-3/4 in length, 2-5/16 in width, 3-27/32 in height
  • Environmental Rating: Indoor, Outdoor, Hazardous, Washdown
  • Certifications: CSA and UL Listed
