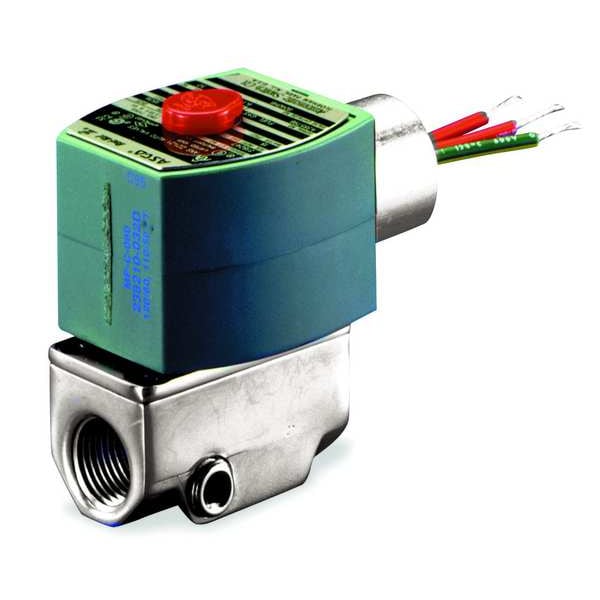

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/8 in Pipe Size, 120V AC, Spool, Test Port
Mfr # 8040H008
Zoro # G0719153
Key Features
Specifications
Product Information
Dimensions
Description
The ASCO 8040H008 is a normally closed, direct acting 2-way/2-position solenoid valve designed for gas pilot control of commercial and industrial gas burners. It operates with a 120V AC coil and includes the coil and sealing components. Constructed with an aluminum body and NBR seals, this valve controls the flow of fuel oil and gas. It has a maximum gas capacity of 64,400 BtuH and a flow coefficient (Cv) of 1.2. The valve can be installed horizontally or vertically and is rated for indoor and outdoor environments with an ambient temperature range from -40°F to 125°F.
Key Features:
- Valve Design: 2-Way/2-Position, Normally Closed
- Operation Type: Direct Acting
- Body Material: Aluminum
- Seal Material: NBR (Buna-N)
- Coil Electrical: 120V AC, 6.1 W wattage, 50 Hz and 60 Hz frequency, Class F insulation
- Coil Enclosure: General Purpose, Watertight, Without Junction Box
- Electrical Connections: 18 in Leads
- Inlet and Outlet Connection Type: NPTF with NPT thread
- Nominal Pipe Size: 3/8 in; Orifice Diameter: 5/16 in
- Operating Pressure Differential: 0 psi minimum, 15 psi maximum for air/inert gas and water
- Dimensions: Overall Length 2 in; Width 1-11/16 in; Height 2-3/4 in
- Includes: Coil and seal
- Environmental Rating: Indoor, Outdoor
- Valve Type: Spool, Test Port
- Center Line Pipe Center Size: 2-5/16 in
- Standards: CSA for Safety Shutoff, FM, UL
