  11. Solenoid Valve, 2-Way, 2-Position, Normally Open, 1-1/2 in Pipe Size, 120V AC, High Flow, Brass

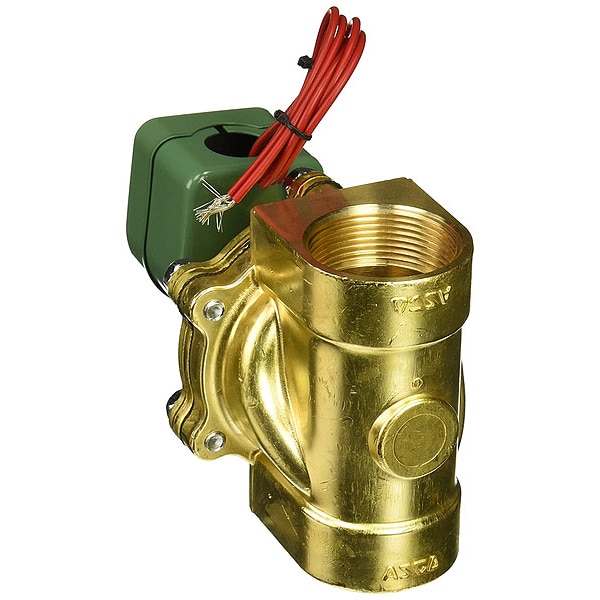

Asco Solenoid Valve, 2-Way, 2-Position, Normally Open, 1-1/2 in Pipe Size, 120V AC, High Flow, Brass 8210B059 - main

Solenoid Valve, 2-Way, 2-Position, Normally Open, 1-1/2 in Pipe Size, 120V AC, High Flow, Brass

  • Mfr # 8210B059

  • Zoro # G1808082

product price: $1,314.99
/ea
Free Shipping & Returns

Key Features

For Media
Air, Inert Gas, Light Oil, Water
Valve Ways
2-Way
Valve Starting Configuration
Normally Open
Nominal Pipe Size
1-1/2 in
Inlet Connection Type
NPT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8210B059
Zoro #
G1808082
UPC #
094701542969
Country of Origin
Mexico

Dimensions

Nominal Pipe Size
1-1/2 in
Overall Height
7-11/16 in
Overall Width
3-15/16 in
Center Line Pipe Center Size
6-9/16 in
Overall Length
4-7/16 in
Orifice Diameter
1-1/4 in

Details

For Media
Air, Inert Gas, Light Oil, Water
Valve Ways
2-Way
Valve Starting Configuration
Normally Open
Inlet Connection Type
NPT
Outlet Connection Type
NPT
Voltage
120V AC
Valve Type
High Flow
Operation Type
Pilot Operated
Seal Material
NBR
Operating Pressure Differential - Maximum
350 psi Air/Inert Gas, 125 psi Light Oil, 150 psi Water
Operating Pressure Differential - Minimum
0 psi Air/Inert Gas, Light Oil, Water
Item
Solenoid Valve
Valve Design
2-Way/2-Position
Electrical Connections
1/2 in Conduit Hub
IP Rating
66
Coil Insulation Class
F
Coil Enclosure
Without Junction Box, Watertight
Body Material
Brass
Standards
UL Listed
Application
Air Compressors, Car Wash Equipment, Industrial Water Control, Laundry Equipment, Pumps
Operating Pressure Differential Hot Water - Maximum
Not Rated
Includes Coil
Yes
Response Time
1 sec
Environmental Rating
Corrosive, Hazardous, Indoor, Outdoor
Operating Pressure Differential Water - Minimum
0 psi
Operating Pressure Differential Air/Inert Gas - Minimum
0 psi
Frequency
50 Hz, 60 Hz
Coefficient of Volume (Cv)
22.5
Wattage
20 W
NEMA Enclosure Rating
1, 2, 3, 3S, 4, 4X
Mounting Orientation
Vertical
Operating Pressure Differential Light Oil - Maximum
125 psi
Fluid Temperature - Maximum
180°F
Ambient Temperature - Maximum
140 Degrees F
Operating Pressure Differential Air/Inert Gas - Maximum
350 psi
Valve Positions
2-Position
Operating Pressure Differential Light Oil - Minimum
0 psi
Includes Seal
Yes
Ambient Temperature - Minimum
14 Degrees F
Operating Pressure Differential Steam - Maximum
Not Rated
Operating Pressure Differential Water - Maximum
125 psi
Thread Type
BSPP, NPT

Description

Solenoid Valve, Valve Ways 2-Way, Valve Starting Configuration Normally Open, Valve Type High Flow, Nominal Pipe Size 1 1/2 in, Orifice Diameter 1 1/4 in, Body Material Brass, Coefficient of Volume (Cv) 22.5, Operating Pressure Differential Air/Inert Gas - Maximum 350 psi, Operating Pressure Differential Fuel Gas - Maximum Not Applicable, Seal Material NBR, Voltage 110V AC, 120V AC, Operating Pressure Differential Fuel Oil - Maximum Not Applicable, Coil Enclosure Watertight
