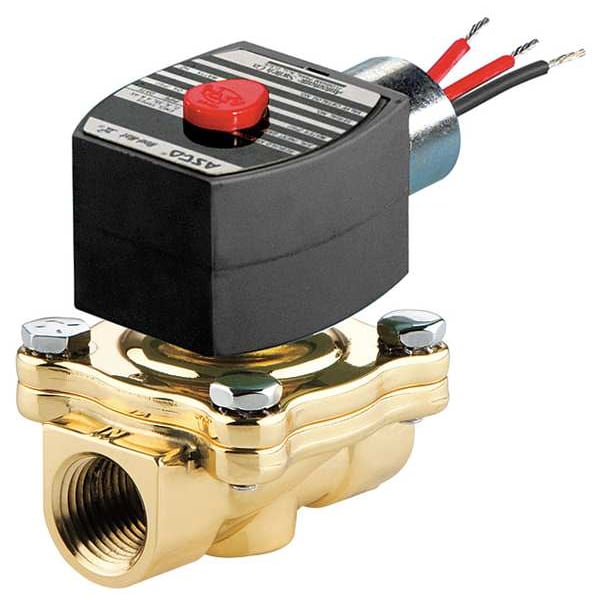

Solenoid Valve, 2-Way, 2-Position, Normally Open, 1 in Pipe Size, 120V AC, High Flow, Brass, NBR

  • Mfr # EF8210G014

  • Zoro # G2610036

product price:
$
581.99
/ea
Free Shipping & Returns

Key Features

For Media
Air, Inert Gases, Light Oil, Water
Valve Ways
2-Way
Valve Starting Configuration
Normally Open
Nominal Pipe Size
1 in
Inlet Connection Type
NPTF
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EF8210G014
Zoro #
G2610036
UPC #
094714440528
Country of Origin
United States

Dimensions

Nominal Pipe Size
1 in
Overall Height
6-7/16 in
Overall Length
3-3/4 in
Overall Width
3-9/16 in
Center Line Pipe Center Size
4-13/16 in
Orifice Diameter
1 in
Wire Rope Length
3 3/4 in
Length
3 3/4 in

Details

For Media
Air, Inert Gases, Light Oil, Water
Valve Ways
2-Way
Valve Starting Configuration
Normally Open
Inlet Connection Type
NPTF
Outlet Connection Type
NPTF
Voltage
120V AC
Valve Type
High Flow
Operation Type
Pilot Operated
Seal Material
NBR
Operating Pressure Differential - Maximum
150 psi Air/Inert Gas, Water, 125 psi Light Oil
Operating Pressure Differential - Minimum
5 psi Air/Inert Gas, Light Oil, Water
Item
Solenoid Valve
Body Material
Brass
Coil Insulation Class
F
Coil Enclosure
Explosion Proof, Watertight
Application
Air Compressors, Car Wash Equipment, Industrial Water Control, Laundry Equipment, Pumps
Valve Design
2-Way/2-Position
Electrical Connections
1/2 in Conduit Hub
Standards
UL Listed
Coefficient of Volume (Cv)
13
Includes Coil
Yes
Operating Pressure Differential Light Oil - Minimum
5 psi
Operating Pressure Differential Water - Maximum
150 psi
Thread Type
NPT
Ambient Temperature - Minimum
14 Degrees F
Operating Pressure Differential Air/Inert Gas - Minimum
5 psi
Operating Pressure Differential Hot Water - Maximum
Not Rated
Frequency
60 Hz
Operating Pressure Differential Air/Inert Gas - Maximum
150 psi
NEMA Enclosure Rating
1, 2, 3, 3S, 4, 4X
Fluid Temperature - Maximum
180 Degrees F
Mounting Orientation
Vertical
Operating Pressure Differential Water - Minimum
5 psi
Environmental Rating
Indoor, Outdoor
Operating Pressure Differential Steam - Maximum
Not Rated
Wattage
16.1 W
Ambient Temperature - Maximum
140 Degrees F
Response Time
1 sec
Includes Seal
Yes
Operating Pressure Differential Light Oil - Maximum
125 psi
Valve Positions
2-Position

Description

The ASCO EF8210G014 is a pilot-operated, normally open solenoid valve designed for controlling the flow of air, inert gases, light oil, and water. It features a 2-way/2-position valve design with a 1-inch orifice diameter and 1-inch nominal pipe size, providing a flow coefficient (Cv) of 13.This valve is rated for differential pressure: 5 to 150 psi (air, inert gas, water); 5 to 125 psi (light oil). Operating ambient temperature range: 14°F to 140°F. Maximum fluid temperature: 180°F.

Key Features:

  • Valve Type: High Flow, Pilot Operated
  • Valve Configuration: 2-Way/2-Position, Normally Open
  • Body Material: Brass
  • Orifice Diameter: 1 in
  • Nominal Pipe Size: 1 in
  • Differential pressure rating: 5 to 150 psi (air, inert gas, water); 5 to 125 psi (light oil)
  • Flow Coefficient (Cv): 13
  • Operating ambient temperature range: 14°F to 140°F
  • Maximum Fluid Temperature: 180°F
  • Environmental Rating: Indoor, Outdoor
  • Mounting Orientation: Vertical
  • Coil Included: Yes, with Class F insulation
  • Coil Enclosure: Explosion Proof, Watertight
  • Electrical Connections: 1/2 in Conduit Hub
  • Seal Material: NBR
  • Response Time: 1 second
  • Dimensions: 6-7/16 in height, 3-3/4 in length, 3-9/16 in width
  • Thread Type: NPT inlet and outlet (NPTF connection type)
  • Standards: UL Listed
