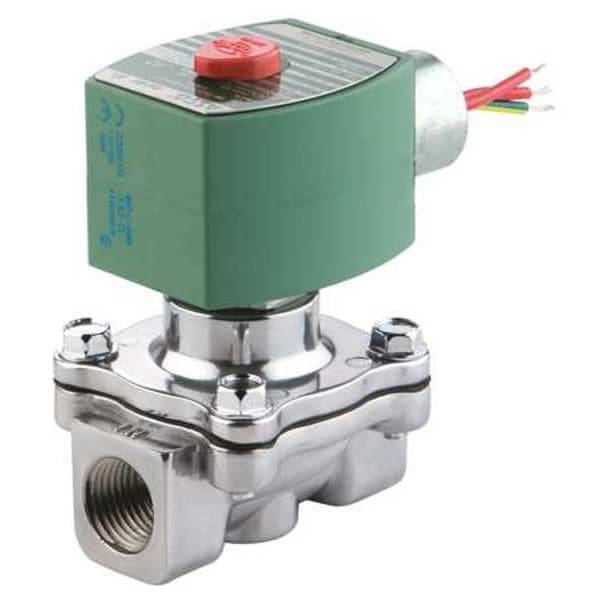

Solenoid Valve, 2-Way, 2-Position, Normally Open, 1/2 in Pipe Size, 120V AC, High Flow, Aluminum
Mfr # 8215G023
Zoro # G1839616
Key Features
Specifications
Product Information
Dimensions
Description
The ASCO 8215G023 is a direct-acting, 2-way, 2-position solenoid valve designed for controlling the flow of air and vacuum within pneumatic systems. It includes the necessary coil and sealing components, allowing for automated and remote operation with a normally open valve starting position. The valve features aluminum body construction and NBR seal material, supporting media temperatures up to 125°F and operating at ambient temperatures from 32°F to 125°F. It is rated for differential pressure from 0 to 125 psi (air/inert gas and water).
Key Features:
- Valve Design: 2-Way/2-Position, Normally Open starting configuration
- Valve Type: High Flow with a 3/4 in orifice diameter
- Body Material: Aluminum with NBR (Buna-N) seals included
- Electrical: 120V AC supply voltage, 10.1 W coil wattage, Class F coil insulation, 18 in leads
- Environmental Ratings: Suitable for indoor and outdoor use with IP65 enclosure
- Connections: Inlet and outlet ports with NPTF threaded connections compatible with NPT thread type
- Physical Dimensions: Overall length 2-3/4 in; width 2-3/8 in; height 4-7/16 in
- Performance: Coefficient of volume (Cv) of 4, response time of 120 msec
- Operating Conditions: Ambient temperature range 32°F to 125°F; fluid temperature max 125°F
- Operating Pressure: Minimum differential 0 psi, maximum 125 psi for air/inert gas and water
- Includes coil and seal components for installation
