  11. Solenoid Valve, 2-Way, 2-Position, Normally Open, 1/2 in Pipe Size, 120V AC, Self-Cleaning, Brass

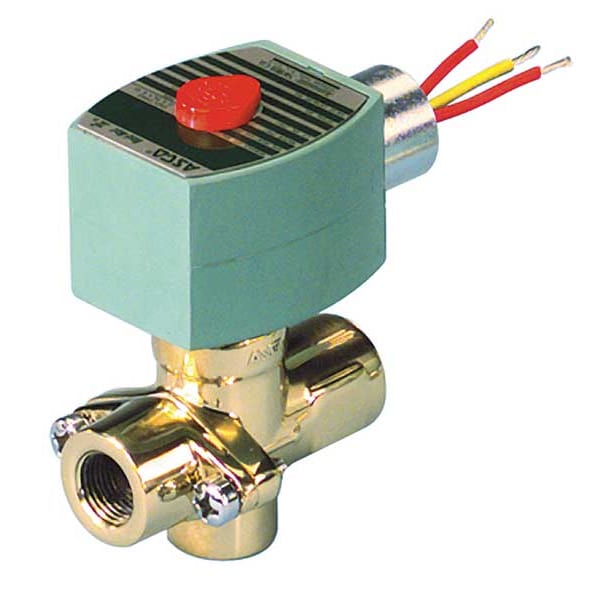

Asco Solenoid Valve, 2-Way, 2-Position, Normally Open, 1/2 in Pipe Size, 120V AC, Self-Cleaning, Brass 8267G015 - main

Solenoid Valve, 2-Way, 2-Position, Normally Open, 1/2 in Pipe Size, 120V AC, Self-Cleaning, Brass

  • Mfr # 8267G015

  • Zoro # G2068595

product price: $558.99
/ea
Free Shipping & Returns

Key Features

For Media
Steam
Valve Ways
2-Way
Valve Starting Configuration
Normally Open
Nominal Pipe Size
1/2 in
Voltage
120V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
8267G015
Zoro #
G2068595
UPC #
-
Country of Origin
United States

Dimensions

Nominal Pipe Size
1/2 in
Center Line Pipe Center Size
3-21/64 in
Overall Length
3-7/16 in
Overall Width
2-1/16 in
Overall Height
4-5/16 in
Orifice Diameter
3/8 in

Details

For Media
Steam
Valve Ways
2-Way
Valve Starting Configuration
Normally Open
Voltage
120V AC
Valve Type
Self-Cleaning
Seal Material
PTFE
Operating Pressure Differential - Maximum
15 psi Steam
Operating Pressure Differential - Minimum
0 psi Steam, Water
Item
Solenoid Valve
Coil Insulation Class
H
Body Material
Brass
Max. Fluid Temp. Steam
250 Degrees F
Coil Enclosure
Without Junction Box, Watertight
Electrical Connections
1/2 in Conduit with 18 in Leads
Ambient Temp. Range
125 Degrees F
Valve Design
2-Way/2-Position
Standards
UL Listed
Operating Pressure Differential Water - Maximum
Not Rated
Operating Pressure Differential Air/Inert Gas - Maximum
Not Rated
Operating Pressure Differential Steam - Minimum
0 psi
Operating Pressure Differential Water - Minimum
0 psi
Environmental Rating
Indoor, Outdoor
Operating Pressure Differential Light Oil - Maximum
Not Rated
Operating Pressure Differential Steam - Maximum
15 psi
Ambient Temperature - Maximum
125 Degrees F
Wattage
16.1 W
Includes Coil
Yes
NEMA Enclosure Rating
1, 2, 3, 3S, 4, 4X
Valve Positions
2-Position
Frequency
60 Hz
Includes Seal
Yes
Operating Pressure Differential Hot Water - Maximum
Not Rated
Coefficient of Volume (Cv)
4.5
Fluid Temperature - Maximum
250°F Steam

Description

The ASCO 8267G015 is a brass-bodied, normally open 2-way/2-position solenoid valve rated for steam service. It operates with a 120V AC power supply at 60 Hz and includes the solenoid coil and sealing components needed for installation. Environmental rating: indoor/outdoor use. Fluid temperature rating: 250°F (steam). Ambient temperature rating: 125°F maximum. Actuation: solenoid-driven.

Key Features:

  • Valve Configuration: 2-Way, 2-Position, Normally Open
  • Body Material: Brass
  • Seal Material: PTFE
  • Coil Electrical: 120V AC, 60 Hz, 16.1 W wattage
  • Coil Enclosure: Watertight, without junction box
  • Electrical Connections: 1/2 in Conduit with 18 in Leads
  • Operating Temperature: Ambient temperature rating: 125°F maximum; Fluid temperature rating: 250°F (steam)
  • Pressure Ratings: Operating differential pressure 0 to 15 psi steam
  • Dimensions: Overall length 3-7/16 in, height 4-5/16 in, width 2-1/16 in; center line pipe center 3-21/64 in
  • Orifice Diameter: 3/8 in
  • Includes Coil: Yes, Includes Seal: Yes
  • Environmental rating: Indoor/Outdoor use
  • Standards: UL Listed
