Solenoid Valve, 2-Way, 2-Position, Normally Open, 2 in Pipe Size, 12V DC, High Flow, Pilot Operated

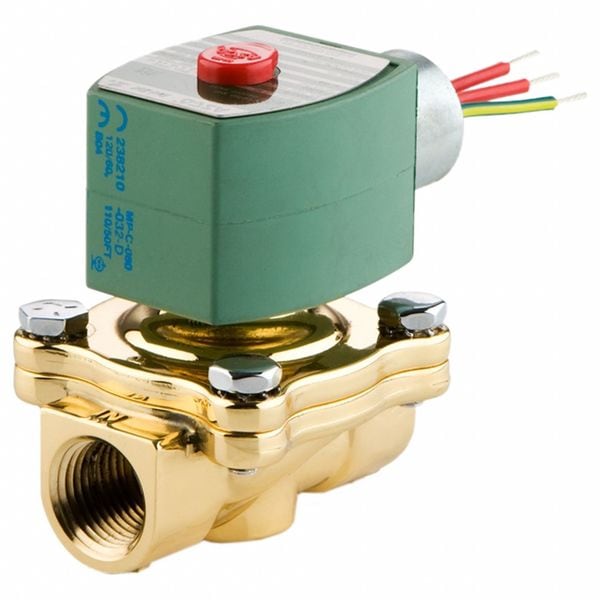

The ASCO 8210G103LF 12/DC is a 2-way, 2-position pilot operated solenoid valve designed for controlling the flow of air, inert gases, light oil, and water. It features a normally open configuration and a high flow valve type, intended for use with air, inert gases, light oil, and water in industrial fluid control systems. The valve body is made of brass and includes an NBR seal. The valve operates with a nominal 2-inch pipe size and uses NPTF connections for both inlet and outlet. It is suitable for indoor and outdoor use within the ambient temperature range of 14°F to 140°F. The valve includes a coil and seals, with the coil housed in a watertight enclosure and powered by a 12 VDC supply at 16.1 watts. Electrical connections are provided via a 1/2 inch conduit hub, and the valve must be mounted vertically.

Key Features:

• Valve Type: High Flow, Pilot Operated, 2-Way, 2-Position
• Starting Configuration: Normally Open
• Body Material: Brass with NBR Seal
• Nominal Pipe Size: 2 in
• Connections: Inlet and Outlet NPTF threads
• Operating Media: Air, Inert Gases, Light Oil, Water
• Operating Pressure Differential: Minimum 5 psi; Maximum 350 psi (Air/Inert Gas), 125 psi (Light Oil, Water)
• Ambient Temperature Range: 14°F to 140°F
• Maximum Fluid Temperature: 180°F
• Electrical: 12 VDC coil, 16.1 W power, watertight coil enclosure
• Electrical Connection: 1/2 in Conduit Hub
• Mounting Orientation: Vertical
• Includes: Coil and seals
• Response Time: 1 second
• Environmental Rating: Indoor, Outdoor
• Standards: UL Listed
