Solenoid Valve, 2-Way, 2-Position, Normally Open, 3/4 in Pipe Size, 120V AC, Compact, Direct Acting

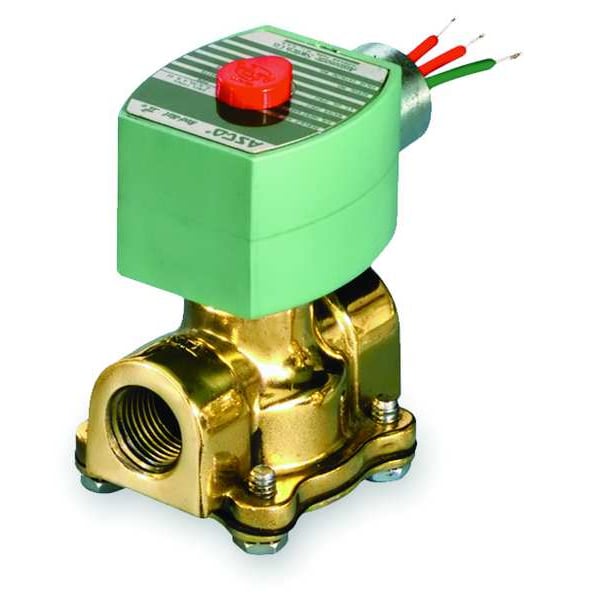

The ASCO 8030G083 is a direct-acting, normally open solenoid valve constructed with a brass body. Designed for low pressure general service and vacuum applications, it controls the flow of air, inert gases, and water by using an energized coil to open or close the valve. It supports horizontal or vertical mounting and has a 2-way/2-position valve design with a 3/4 inch orifice diameter and 3/4 inch nominal pipe size. The valve accommodates a maximum ambient temperature of 140°F and a fluid temperature up to 180°F. It operates within a pressure differential range of 0 to 2 psi for air, inert gases, and water. The coil is supplied with the valve and is rated Class F insulation with a wattage of 10.1 W at 120V AC.

Key Features:

• Valve Type: Compact, Direct Acting
• Valve Starting Configuration: Normally Open
• Valve Ways and Positions: 2-Way, 2-Position design
• Connection Types: NPTF inlet and outlet threads
• Operating Pressure Differential: 0 psi minimum to 2 psi maximum for Air/Inert Gas and Water
• Media Compatibility: Air, Inert Gas, Water
• Maximum Ambient Temperature: 140°F; Minimum Ambient Temperature: 14°F
• Maximum Fluid Temperature: 180°F
• Coil: Included, 120V AC, 10.1 W power consumption, Class F insulation, housed without junction box and watertight enclosure
• Electrical Connections: 1/2 inch conduit with 18 inch leads
• Environmental Rating: IP66
• Response Time: 1 second
• Seal Material: NBR
• Physical Dimensions: 4 in height, 2-13/16 in length, 2-1/4 in width
• IP Rating: 66
