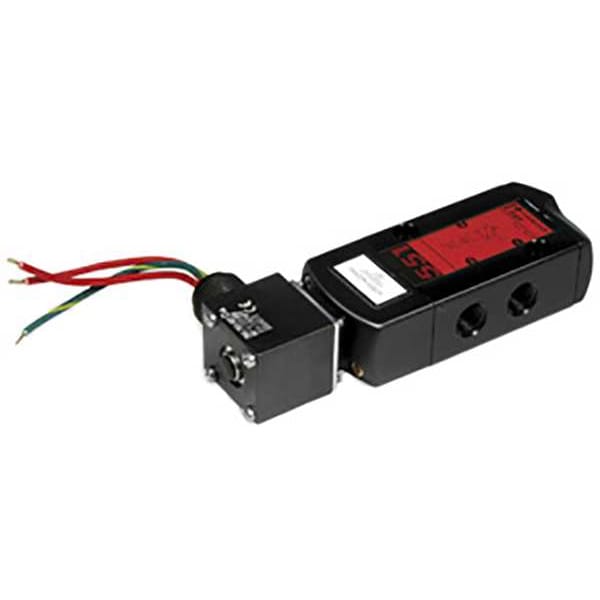

Solenoid Valve, 3-Way, 2-Position, Configurable, 1/4 in Pipe Size, 120V AC, Remote Pilot, NBR, PUR

  • Mfr # WT8551A017MS

  • Zoro # G2868451

product price:
$
291.99
/ea
Free Shipping & Returns

Key Features

For Media
Air, Inert Gas
Valve Ways
3-Way
Valve Starting Configuration
Configurable
Nominal Pipe Size
1/4 in
Voltage
120V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
WT8551A017MS
Zoro #
G2868451
UPC #
094704402758
Country of Origin
United States
For Media
Air, Inert Gas
Valve Ways
3-Way
Valve Starting Configuration
Configurable
Voltage
120V AC
Valve Type
Remote Pilot
Operation Type
Pilot Operated
Seal Material
NBR, PUR
Operating Pressure Differential - Maximum
150 psi Air/Inert Gas
Operating Pressure Differential - Minimum
30 psi Air/Inert Gas, Light Oil, Water
Item
Solenoid Valve
Valve Design
5-Way/2-Position
Standards
ATEX, SIL
Mounting
Namur
Coil Enclosure
Without Junction Box, Watertight
Body Material
Black Anodized Aluminum
Coil Insulation Class
F
Application
Chemicals, Refining, Food and Beverage Applications, Life Science Processing
Electrical Connections
18 in Leads
Actuator Type
Single Air Pilot
Operating Pressure Differential Hot Water - Maximum
Not Rated
Valve Positions
2-Position
Environmental Rating
Corrosive, Hazardous, Indoor, Outdoor
Operating Pressure Differential Water - Maximum
Not Rated
Ambient Temperature - Maximum
176 Degrees F
Includes Coil
Yes
Wattage
6.3 W
Operating Pressure Differential Light Oil - Maximum
Not Rated
Operating Pressure Differential Light Oil - Minimum
30 psi
Mounting Orientation
Horizontal or Vertical
Operating Pressure Differential Steam - Maximum
Not Rated
Fluid Temperature - Maximum
140 Degrees F
Ambient Temperature - Minimum
-76 Degrees F
NEMA Enclosure Rating
1, 2, 3, 3S, 4, 4X
Frequency
60 Hz
Coefficient of Volume (Cv)
0.86
Operating Pressure Differential Water - Minimum
30 psi
Operating Pressure Differential Air/Inert Gas - Minimum
30 psi
Includes Seal
Yes
Operating Pressure Differential Air/Inert Gas - Maximum
150 psi

Description

The ASCO WT8551A017MS is a 3-way, 2-position solenoid valve featuring a remote pilot valve design and single air pilot actuator type. It is constructed with a black anodized aluminum body and includes the necessary coil and seals. This valve is configured for operation with a defined starting configuration and supports mounting in either horizontal or vertical orientation using a Namur mount. It controls the flow of air and inert gases with a nominal pipe and orifice diameter of 1/4 inch. Maximum fluid temperature: 140°F. Differential pressure range: 30 psi to 150 psi for air and inert gases.

Key Features:

  • Body Material: Black Anodized Aluminum
  • Actuator Type: Single Air Pilot; Operation Type: Pilot Operated
  • Orifice Diameter: 1/4 in; Nominal Pipe Size: 1/4 in
  • Ambient Temperature Range: -76°F minimum to 176°F maximum
  • Electrical Specifications: 120V AC voltage; 60 Hz frequency; 6.3 W wattage; includes coil
  • Electrical Connections: 18 in Leads
  • Coil Enclosure: General Purpose, Watertight, Without Junction Box
  • Coil Insulation Class: F
  • Seal Material: NBR, PUR
  • Mounting: Namur; Mounting Orientation: Horizontal or Vertical
  • Overall Dimensions: 8-9/32 in length, 1-3/4 in width, 1-1/8 in height
  • Includes Seal: Yes
  • Standards: CSA Certified, UL Recognized Component
