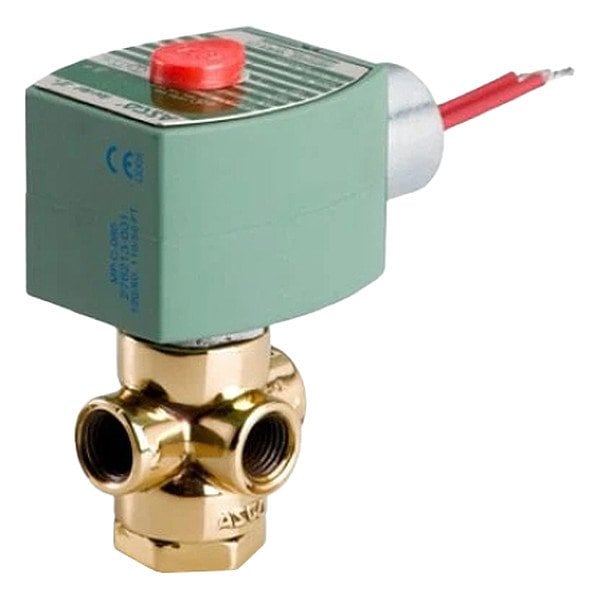

Solenoid Valve, 3-Way, 2-Position, Configurable, 1/8 in Pipe Size, 24V DC, Direct Mount, Brass, NBR
- Mfr # 8320G212 24/DC
- Zoro # G912165863
product price:
$
188.99
/ea
Free Shipping & Returns
Key Features
For Media
Air, Inert Gases, Light Oil, Water
Valve Ways
3-Way
Valve Starting Configuration
Configurable
Nominal Pipe Size
1/8 in
Inlet Connection Type
NPT
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 8320G212 24/DC
- Zoro #
- G912165863
- UPC #
- -
- Country of Origin
- Indonesia
Dimensions
- Nominal Pipe Size
- 1/8 in
- Overall Width
- 1-15/16 in
- Orifice Diameter
- 1/16 in
- Overall Length
- 3-1/32 in
- Overall Height
- 3-5/8 in
- Wire Rope Length
- 3 1/32 in
- Length
- 3 1/32 in
Description
The ASCO 8320G212 24 V DC is a direct-acting, 3-way solenoid valve designed to control the flow of air, inert gases, light oil, and water. It operates from a 24 V DC power supply and includes the coil and seals needed for installation. The valve body is brass with NBR sealing components, providing a straight-body design suitable for horizontal or vertical mounting. The valve features an adjustable starting position and a 1/16-inch orifice diameter for flow control.
Key Features:
- Operation: Direct Acting with 2-Position valve control
- Voltage: 24 V DC nominal operating voltage
- Media Compatibility: Air, Inert Gases, Light Oil, Water
- Maximum Ambient Temperature: 104°F, Minimum Ambient Temperature: 32°F
- Maximum Fluid Temperature: 150°F
- Maximum Operating Pressure Differential: 125 psi for Air/Inert Gas, Light Oil, Water
- Body Material: Brass with NBR sealing components
- Orifice Diameter: 1/16 inch
- Nominal Pipe Size: 1/8 inch with NPT inlet and outlet connections and thread type
- Mounting Orientation: Horizontal or Vertical
- Coil Enclosure: Watertight with Insulation Class F
- Dimensions: Overall Height 3-5/8 in, Length 3-1/32 in, Width 1-15/16 in
