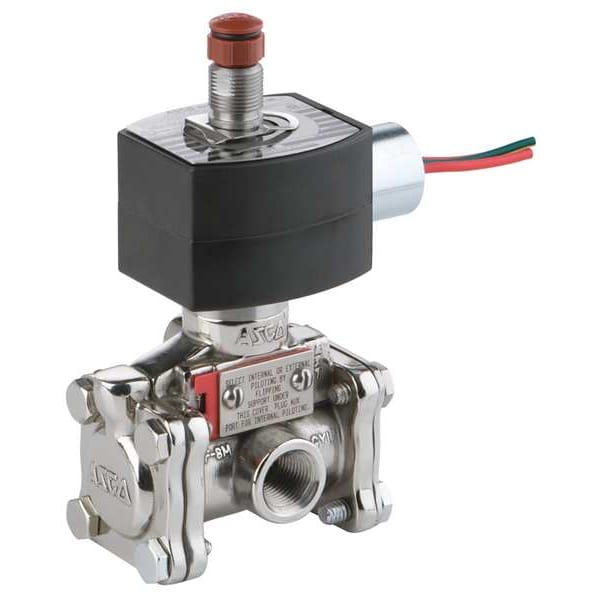

Solenoid Valve, 3-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 24V DC, Quick Closing, Brass
- Mfr # EF8316H301
- Zoro # G3674185
product price:
$
947.99
/ea
Free Shipping & Returns
Key Features
For Media
Air, Inert Gases
Valve Ways
3-Way
Valve Starting Configuration
Normally Closed
Nominal Pipe Size
1/4 in
Inlet Connection Type
NPTF
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- EF8316H301
- Zoro #
- G3674185
- UPC #
- 094714832446
- Country of Origin
- United States
Dimensions
- Nominal Pipe Size
- 1/4 in
- Overall Length
- 4-1/16 in
- Center Line Pipe Center Size
- 4-1/4 in
- Overall Width
- 2-1/16 in
- Overall Height
- 6 in
- Orifice Diameter
- 5/16 in
- Wire Rope Length
- 4 1/16 in
- Length
- 4 1/16 in
Description
The ASCO EF8316H301 is a 3-way, 2-position direct acting solenoid valve designed to control the flow of air, inert gases, and liquids. It features a brass body and is equipped with a coil and seals. The valve operates in a normally closed configuration; no time-to-close specification provided. It supports a nominal pipe size of 1/4 inch with NPTF inlet and outlet connections, intended for industrial fluid control applications with 1/4 in nominal pipe size, NPTF inlet/outlet, 0–130 psi differential, and maximum fluid temperature 149°F.
Key Features:
- Valve Design: 3-Way/2-Position with Normally Closed starting configuration
- Operation: Direct Acting with Quick Closing characteristic
- Body Material: Brass construction
- Orifice Diameter: 5/16 in
- Nominal Pipe Size: 1/4 in; Inlet and Outlet Connection Types: NPTF
- Operating Pressure Differential: 0 to 130 psi for Air/Inert Gas
- Fluid Temperature Maximum: 149°F
- Media Compatibility: Air, Inert Gas, Liquids
- Coil: Included with Explosion Proof, Watertight enclosure and Class F insulation
- Electrical: 24V DC voltage, 0.55 W wattage, 1/2 in conduit with 18 in leads connection
- Seal Material: NBR (Buna-N)
- Environmental Ratings: Indoor, Outdoor, Hazardous locations
- Overall Dimensions: Length 4-1/16 in, Width 2-1/16 in, Height 6 in
- Standards: UL Listed
- NEMA Enclosure Ratings: 3, 3S, 4, 4X, 6, 6P, 7, 9
- Includes Seal: Yes
