Solenoid Valve, 3-Way, 2-Position, Normally Closed, 1/8 in Pipe Size, 24V AC, Direct Mount, NBR

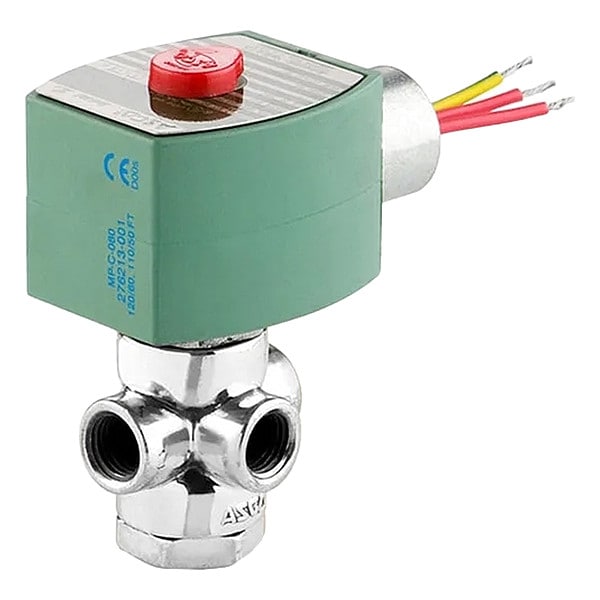

The ASCO 8320G224 solenoid valve is a direct-acting, normally closed valve designed with a 3-way, 2-position configuration. It features a stainless steel straight valve body and operates at 24V AC with a frequency of 60 Hz. This valve is suitable for controlling the flow of air, inert gases, light oil, and water. It supports horizontal or vertical mounting orientations and includes both coil and seal components for installation. The valve has a nominal pipe size of 1/8 inch with NPT inlet and outlet connection types.

Key Features:

• Valve Type: Direct Mount, Direct Acting
• Valve Positions: 2-Position; Valve Starting Configuration: Normally Closed
• Valve Ways: 3-Way
• Body Material: Stainless Steel; Seal Material: NBR
• Orifice Diameter: 1/16 in
• Operating Pressure Differential - Maximum: 210 psi Air/Inert Gas, 225 psi Light Oil, Water; Minimum: 150 psi
• Ambient Temperature Range: 32 to 125°F
• Fluid Temperature Maximum: 200°F
• Coil Enclosure: Watertight; Coil Insulation Class: F; Wattage: 17.1 W
• Dimensions: Overall Height 3-5/8 in, Length 3-1/32 in, Width 1-15/16 in
• Includes: Coil and Seal
• Thread Type: NPT for both inlet and outlet connections
