Solenoid Valve, 3-Way, 2-Position, Normally Closed, 3/8 in Pipe Size, 24V DC, Diaphragm Poppet, NBR

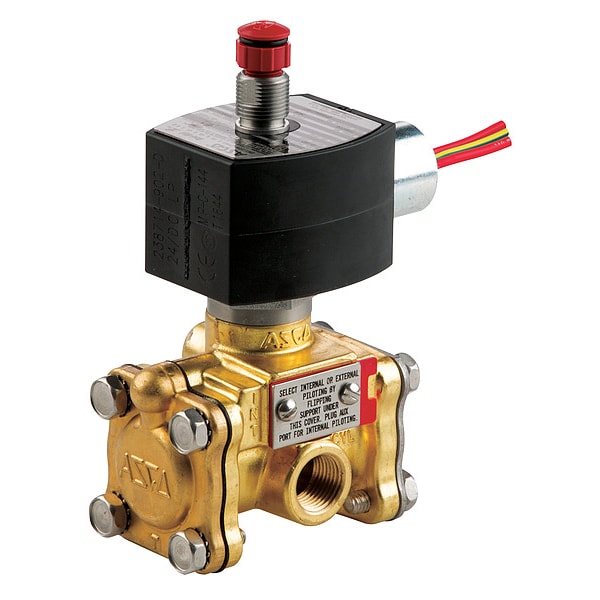

The ASCO EF8316G302 is a 3-way, 2-position diaphragm poppet solenoid valve intended for automated control of the flow of air, inert gases, and liquids. It features a normally closed, direct acting operation that uses an energized coil to move a plunger, opening or closing the flow path. Constructed with a brass body and NBR seal material, this valve includes the coil and sealing components required for installation and operation. Intended for automated fluid control in industrial pneumatic and hydraulic systems.

Key Features:

• Valve Type: Diaphragm Poppet
• Valve Ways/Positions: 3-Way, 2-Position
• Operation Type: Direct Acting, Normally Closed
• Body Material: Brass
• Seal Material: NBR (Buna-N)
• Nominal Pipe Size: 3/8 in with NPTF inlet and outlet connections
• Center Line Pipe Size: 2-7/8 in
• Orifice Diameter: 5/16 in
• Coefficient of Volume (Cv): 1.8
• Operating Pressure Differential: Minimum 15 psi; Maximum 150 psi for air/inert gas
• Fluid Temperature Maximum: 140°F
• Electrical: 24V DC voltage, 0.55 W power consumption; coil enclosure rated explosion proof and watertight with Class F insulation
• Electrical Connections: 1/2 in Conduit with 18 in Leads
• Dimensions: Overall Length 3-1/4 in; Overall Height 5-1/2 in; Overall Width 2-1/16 in
• Includes: Coil and seal
• Standards: CE, CSA certified
• NEMA Enclosure Ratings: 3, 3S, 4, 4X, 6, 6P, 7, 9
