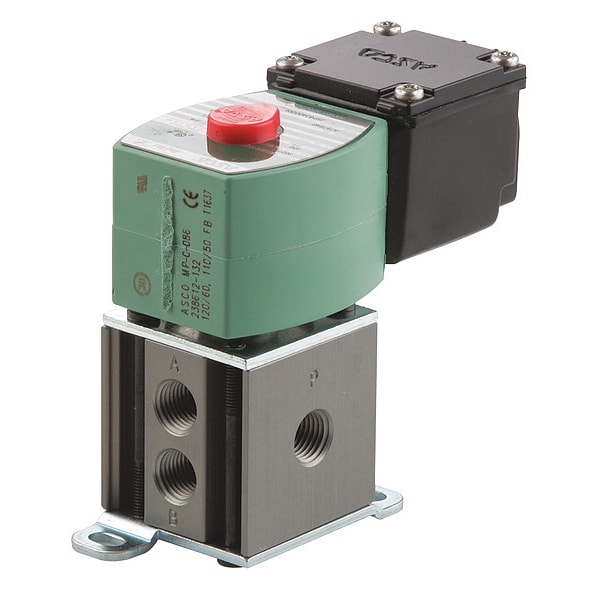

Solenoid Valve, 4-Way, 2-Position, 1/4 in Pipe Size, 120V AC, Inline Single, Aluminum, PE
Mfr # JSP8340G001
Zoro # G5169464
product price:
$
1,168.99
/ea
Free Shipping & Returns
Key Features
For Media
Air, Inert Gas
Valve Ways
4-Way
Nominal Pipe Size
1/4 in
Voltage
120V AC
Valve Type
Inline Single
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- JSP8340G001
- Zoro #
- G5169464
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Nominal Pipe Size
- 1/4 in
- Overall Width
- 1-15/16 in
- Center Line Pipe Center Size
- 2-5/16 in
- Overall Height
- 4-1/8 in
- Overall Length
- 1-15/16 in
- Orifice Diameter
- 1/16 in
- Wire Rope Length
- 1 15/16 in
- Length
- 1 15/16 in
Description
The ASCO JSP8340G001 is a 4-way, 2-position solenoid valve designed to control the flow of air and inert gases by using an coil to actuate the valve mechanism. Constructed with an aluminum body and equipped with a PE seal, it operates with a nominal pipe size of 1/4 inch and a valve orifice diameter of 1/16 inch. This valve offers a coefficient of volume (Cv) of 0.1 and can handle a maximum fluid temperature of 130°F. Its electrical coil includes an IP66-rated junction box enclosure, operates at 120V AC with a wattage of 17.1 W, and has a thermal insulation class F. The product provides IP66-rated environmental protection against dust and water ingress.
Key Features:
- Valve Design: 4-Way/2-Position
- Body Material: Aluminum
- Seal Material: PE (polyethylene)
- Nominal Pipe Size: 1/4 in
- Orifice Diameter: 1/16 in
- Coefficient of Volume (Cv): 0.1
- Maximum Fluid Temperature: 130°F
- Operating Pressure Differential: 0 to 150 psi for Air/Inert Gas; 0 to 145 psi for Light Oil
- Electrical Connections: Spade Terminal
- Coil Enclosure: IP66-rated junction box enclosure
- Coil Insulation Class: F
- Voltage: 120V AC
- Wattage: 17.1 W
- Environmental Rating: Indoor, Outdoor
- IP Rating: 66
- Includes: Coil and Seal
- Standards: UL Listed
- Overall Dimensions: Length 1-15/16 in, Width 1-15/16 in, Height 4-1/8 in
- Valve Type: Inline Single
