Solenoid Valve, 4-Way, 2-Position, Universal, 1/4 in Pipe Size, 120V AC, NAMUR Mount, Brass, NBR
Mfr # EF8345G001
Zoro # G2386237
product price:
$
527.99
/ea
Free Shipping & Returns
Key Features
For Media
Air, Inert Gas, Light Oil, Water
Valve Ways
4-Way
Valve Starting Configuration
Universal
Nominal Pipe Size
1/4 in
Inlet Connection Type
NPTF
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- EF8345G001
- Zoro #
- G2386237
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Nominal Pipe Size
- 1/4 in
- Center Line Pipe Center Size
- 4 in
- Overall Height
- 4-11/16 in
- Overall Width
- 2-1/16 in
- Overall Length
- 3 in
- Orifice Diameter
- 1/16 in
- Wire Rope Length
- 3 in
Description

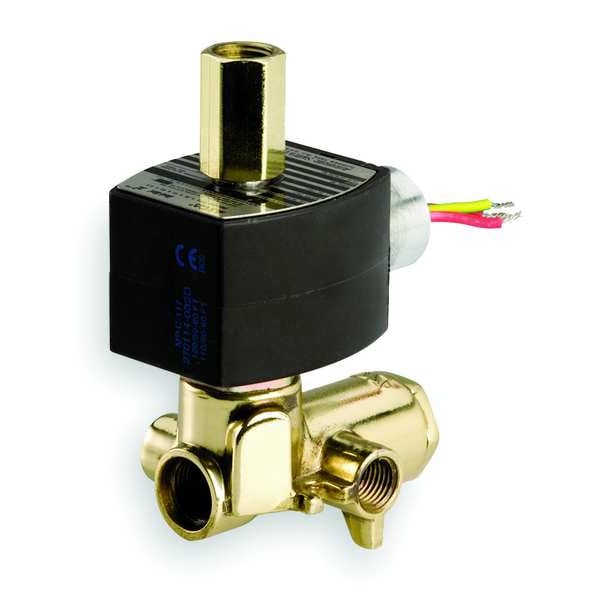

The ASCO EF8345G001 is a pilot-operated, 4-way/2-position solenoid valve designed for controlling the flow of air, inert gases, light oil, and water. It includes an explosion-proof, watertight coil with Class F insulation. The valve features a brass body with NBR seals and pilot-operated actuation. This model is compatible with air, inert gas, light oil, and water within 10 to 150 psi differential and up to 180°F. The valve can be mounted horizontally or vertically and includes the coil and necessary seals.
Key Features:
- Valve Design: 4-Way/2-Position with 2 discrete positions
- Actuator Type: Single Air Pilot
- Body Material: Brass
- Seal Material: NBR (Buna-N)
- Nominal Pipe Size: 1/4 in with 4 in centerline pipe spacing
- Connection Type: NPTF inlet and outlet with NPT threads
- Coil Enclosure: Explosion Proof, Watertight; Coil Insulation Class: F
- Electrical Connections: 1/2 in conduit with 18 in leads; Operating Voltage: 120V AC at 60 Hz
- Operating Pressure Differential: 10 to 150 psi for air, inert gas, light oil, and water
- Maximum Fluid Temperature: 180°F
- Orifice Diameter: 1/16 in
- Valve Type: NAMUR Mount
- Overall Dimensions: Height 4-11/16 in, Length 3 in, Width 2-1/16 in
- Wattage: 10.1 W
- Includes coil and seal
- Standards: CSA, SIL, UL Listed
