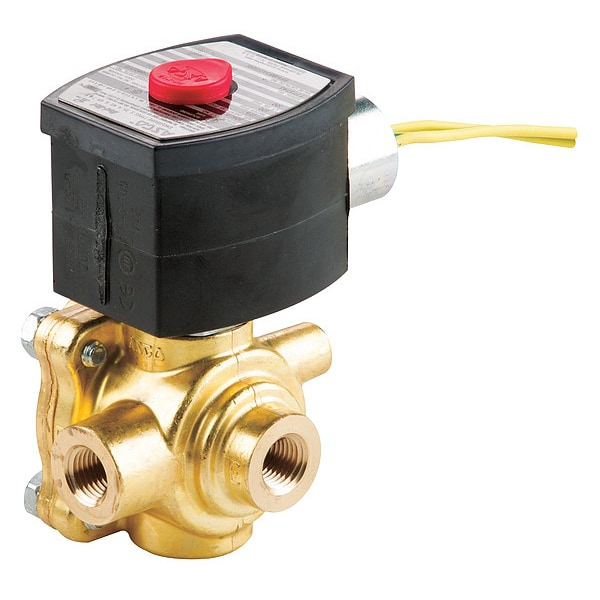

Solenoid Valve, 4-Way, 2-Position, Universal, 1/4 in Pipe Size, 120V AC, NAMUR Mount, Direct Acting
Mfr # EFHB8342G001
Zoro # G5304117
product price:
$
709.99
/ea
Free Shipping & Returns
Key Features
For Media
Air, Inert Gases, Light Oil, Water
Valve Ways
4-Way
Valve Starting Configuration
Universal
Nominal Pipe Size
1/4 in
Inlet Connection Type
NPTF
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- EFHB8342G001
- Zoro #
- G5304117
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Nominal Pipe Size
- 1/4 in
- Overall Height
- 4-7/16 in
- Overall Width
- 2-11/16 in
- Overall Length
- 2-5/8 in
- Center Line Pipe Center Size
- 2-1/2 in
- Orifice Diameter
- 3/16 in
- Wire Rope Length
- 2 5/8 in
- Length
- 2 5/8 in
Description
The ASCO EFHB8342G001 is a direct-acting solenoid valve designed for controlling the flow of air, inert gases, light oil, and water. Constructed with a brass body and FKM seal; Operating temperature ranges: ambient 32–125°F; fluid temperature up to 160°F. The valve features a 1/4 inch nominal pipe size with NPTF inlet and outlet connections. Flow coefficient: Cv = 0.7. It operates at 120V AC with a coil insulation class H and includes the coil and seals. The valve’s 4-way, 2-position design with valve starting configuration: 4-way/2-position; mounting orientation: horizontal or vertical accommodates both mounting orientations. Coil enclosure: Explosion-proof, watertight; Environmental rating: Indoor and outdoor use.
Key Features:
- Valve Type: NAMUR Mount, 4-Way/2-Position, Direct Acting
- Body Material: Brass with FKM seal
- Nominal Pipe Size: 1/4 in; Center Line Pipe Center Size: 2-1/2 in
- Connections: Inlet and Outlet NPTF thread type
- Operating Temperatures: Ambient 32 to 125°F; Fluid up to 160°F
- Operating Pressure Differential: Maximum 125 psi for air/inert gas, 100 psi for light oil and water; Minimum 0 psi
- Flow Capacity: Cv of 0.7 with a 3/16 in orifice diameter
- Electrical: 120V AC, 60 Hz supply frequency, 20.1 W coil wattage, Class H coil insulation
- Coil Enclosure: Explosion Proof, Watertight; Electrical Connections via 1/2 in conduit with 18 in leads
- Environmental Rating: Indoor, Outdoor use
- Includes: coil and seal
- Mounting Orientation: Horizontal or Vertical
- Dimensions: Overall Height 4-7/16 in; Length 2-5/8 in; Width 2-11/16 in
- Standards: CSA, UL Listed
