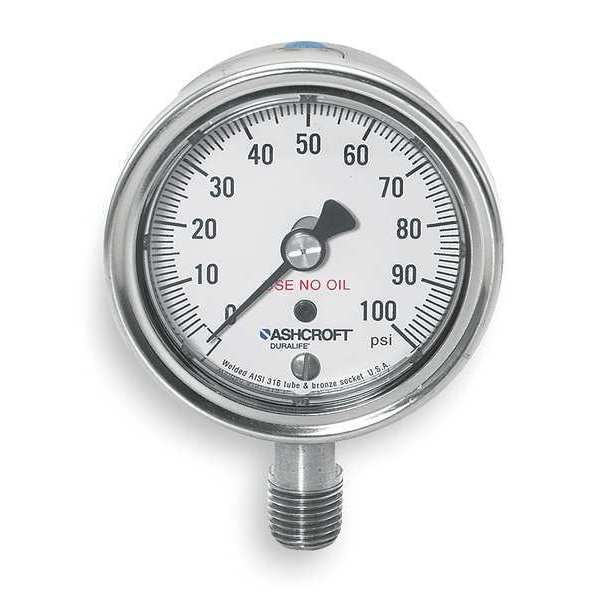

Ashcroft Industrial Pressure Gauge, 0 to 100 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location 251009SW02LX6B100 - main

Industrial Pressure Gauge, 0 to 100 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # 251009SW02LX6B100

  • Zoro # G0029775

product price:  $92.69
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-1.00%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
251009SW02LX6B100
Zoro #
G0029775
UPC #
783156699488
Country of Origin
United States

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Case Diameter
2.75 in
Manufacturer Warranty Length
5 yr
Case Depth
1.25 in
Nominal Dial Size
2 1/2 in
Nominal Dial Diameter
2 1/2 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-1.00%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Refrigeration, Autoclave, Boilers, Water Pressure Testing, Equipment Skids, Hydraulics, Pneumatics, Pumps, Severe Ambient Conditions, OEM Applications
Gauge Case Material
304 Stainless Steel
Series
1009
Lens Material
Polycarbonate
Primary Pressure Range
0 to 100
Primary Scale Units
psi
IP/NEMA Rating
IP54 (Plug Vented), IP65 (Plug Closed), NEMA 4 (Plug Closed)
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Gauge Special Options
PLUS!(TM) Performance
Smallest Graduation
1 psi
Gauge Primary Range Smallest Graduation
1
Calibration Certificate Included
No
Graduations
10 psi
Gauge Primary Range Numbered Graduations
10
Gauge Application
Oxygen Service Cleaned, Pumps and Compressors, Boilers, Equipment Skids, Specialized OEM Equipment, Hydraulics and pneumatics, Severe Ambient Conditions
Case Color
Metallic
Socket Material
316L Stainless Steel
Case Material
304 Stainless Steel
Wetted Materials
Stainless Steel
Standards
ASME, CE, CRN, NSF, RoHS, UKCA
Connection Type
MNPT
Scale Type
Single
Bezel Material
304 Stainless Steel
Primary Scale Numeric Increments
10
Burst Pressure
1,100 psi
Sensor Material
316L Stainless Steel
Dial Face Material
Aluminum
Bezel Mounting Type
Bayonet
Process Temperature Range
-40 Degrees to 250 Degrees F
Pressure Range Type
Pressure
Dial Color
White
Pressure Gauge Type
Industrial Pressure Gauge
Process Connection Gender
Male
Pointer Material
Aluminum
Non-Sparking
No
Case Construction
Welded Joint
Accuracy Scale
Full Scale
Includes Mounting Hardware
No
Primary Scale Minor Graduations
1, 2
Removable Bezel
Yes
Freeze Resistant Movement
No
Movement Material
304 Stainless Steel
Primary Pressure Scale Color
Black
Accuracy Grade
ASME B40.100 Grade 1A
Sensor Type
Bourdon Tube
Compatible Process Media
Deionized Water
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F (-40 Degrees to 93 Degrees C)
Cleaned for Oxygen Service
Yes
Maximum Pressure
100 psi
Pointer Color
Black
Operating Temperature Range
-40 Degrees to 150 Degrees F
Field Fillable
No
Primary Scale Pressure Measurement - Minimum
0 psi
Compatible with Brand
Universal
Process Media Temperature - Maximum
250 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Primary Scale Pressure Measurement - Maximum
100 psi
Primary Scale Color
Black
Case Liquid
None
Operating Temperature - Maximum
200 Degrees F
Process Media Temperature - Minimum
-40 Degrees F
NEMA Enclosure Rating
4X
Includes Calibration Certificate
No
IP Rating
IP65

Description

Industrial Pressure Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-1.00 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating IP54 (Plug Vented), IP65 (Plug Closed), NEMA 4 (Plug Closed), Primary Pressure Range 0 to 100, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge
