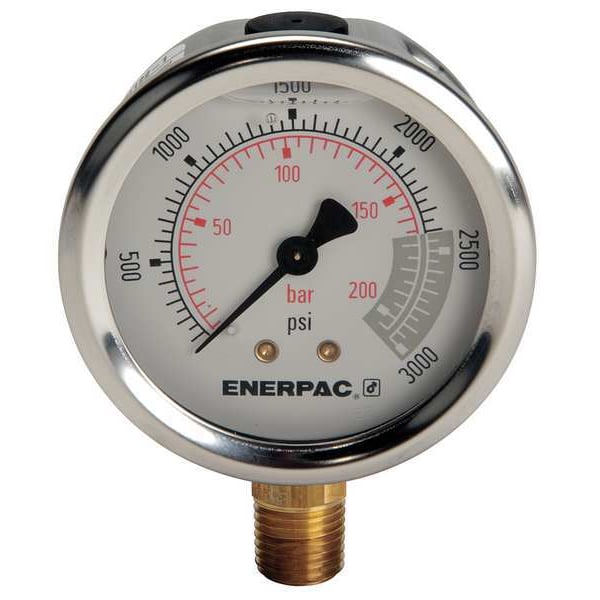

Hydraulic Cylinder Pressure Gauge, 0 to 3,000 psi psi, 2 1/2 in Dial, 1/4 in NPTF, Bottom Location

  • Mfr # G2516L

  • Zoro # G5155613

product price:
$
160.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Accuracy
+/-1.50%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPTF
Dial Size (In.)
2 1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
G2516L
Zoro #
G5155613
UPC #
662005222728
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Length
3.31"
Nominal Dial Size
2 1/2 in
Case Depth
1.46 in
Case Diameter
2.5 in
Nominal Dial Diameter
2 1/2 in

Details

Item
Hydraulic Cylinder Pressure Gauge
Accuracy
+/-1.50%
Process Connection Location
Bottom
Process Connection Type
NPTF
Application
Hydraulics
Gauge Case Material
Stainless Steel
Series
G
Lens Material
Glass
Primary Pressure Range
0 to 3,000 psi
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
Yes
Smallest Graduation
50 psi
Gauge Primary Range Smallest Graduation
50
Includes
Pressure Equalizing Membrane, Safety Blow-Out Disk
Calibration Certificate Included
No
Gauge Application
High Cycle
Gauge Filled With
Glycerin
Case Color
Metallic
Required Gauge Adapter
Enerpac GA-3
For Use With
Hydraulics
Gauge Mounting Method
Lower Mount
Case Material
Stainless Steel
Socket Material
303 Stainless Steel
Connection Type
NPTF
Field Fillable
No
Requires Adapter
Yes
Includes Vent Plug
No
Case Construction
Corrosion Resistant
Sensor Type
Bourdon Tube
Scale Type
Dual
Accuracy Scale
Full Scale
Freeze Resistant Movement
No
Pressure Range Type
Pressure
Compatible Manufacturer Model Number
FM-25NG, NV-251
Primary Scale Minor Graduations
50
Process Connection Gender
Male
Removable Bezel
No
Gauge Case Liquid
Glycerin
Secondary Scale Minor Graduations
5
Pressure Gauge Type
Hydraulic Cylinder Pressure Gauge
Dial Color
White
Includes Mounting Hardware
No
Sensor Material
Copper Alloy
Vibration Resistance
Liquid-Filled
Compatible Gauge Adapter
Enerpac GA-3
Adjustable Pointer
No
Secondary Pressure Range
0 to 200 psi
Compatible Brand and Series
ENERPAC FM-25NG, ENERPAC NV-251
Secondary Scale Units
bar
Maximum Pressure
3,000 psi
NEMA Enclosure Rating
No Enclosure
Process Media Temperature - Minimum
-4 Degrees F
Compatible Cylinder/Press
ENERPAC FM-25NG, ENERPAC NV-251
Primary Scale Pressure Measurement - Maximum
3,000 psi
Secondary Scale Pressure Measurement - Maximum
200 bar
Process Media Temperature - Maximum
140 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Secondary Scale Pressure Measurement - Minimum
0 bar
Case Liquid
Glycerin
Compatible with Manufacturer Part Number
FM-25NG, NV-251
Compatible Gauge Adapter Series
Enerpac GA-3
Compatible Cylinder Series
ENERPAC FM-25NG, ENERPAC NV-251

Description

Pressure Gauge,Liquid Filled,2-1/2 In.,0 to 3000 psi,Connection Size 1/4 In. MNPT,Connection Location Lower,Smallest Graduation 50 psi,Accuracy +/-1.5 Percent,Case Material Stainless Steel,Case Color Silver,Filled With Glycerin,Lens Material Glass,Required Gauge Adapter Enerpac GA-3,For Use With Hydraulics,Series G,Includes Safety Blow Out Disk
