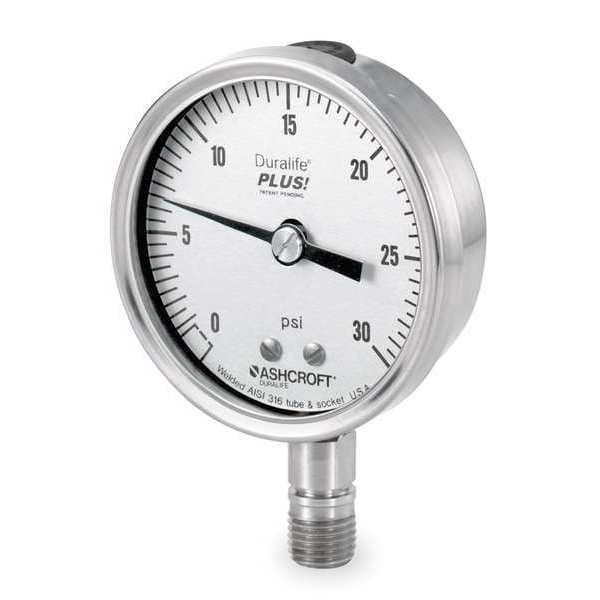

Ashcroft Industrial Pressure Gauge, 0 to 30 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location 251009SW02LXLL30 - main

Industrial Pressure Gauge, 0 to 30 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # 251009SW02LXLL30

  • Zoro # G0031665

product price:  $76.79
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-1.0%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
251009SW02LXLL30
Zoro #
G0031665
UPC #
759426720459
Country of Origin
United States

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Nominal Dial Size
2 1/2 in
Case Diameter
2.75 in
Case Depth
1.25 in
Manufacturer Warranty Length
5 yr
Nominal Dial Diameter
2 1/2 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-1.0%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Refrigeration, Autoclave, Boilers, Water Pressure Testing, Equipment Skids, Hydraulics, Pneumatics, Pumps, Severe Ambient Conditions, OEM Applications
Gauge Case Material
304 Stainless Steel
Series
1009
Lens Material
Polycarbonate
Primary Pressure Range
0 to 30
Primary Scale Units
psi
IP/NEMA Rating
IP54 (Plug Vented), IP65 (Plug Closed), NEMA 4 (Plug Closed)
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Gauge Special Options
PLUS!(TM) Performance
Gauge Application
Pumps and Compressors, Boilers, Equipment Skids, Specialized OEM Equipment, Hydraulics and pneumatics, Severe Ambient Conditions
Case Color
Metallic
Gauge Primary Range Smallest Graduation
0.5
Calibration Certificate Included
No
Graduations
5 psi
Smallest Graduation
0.5 psi
Case Material
304 Stainless Steel
Socket Material
316L Stainless Steel
Standards
ASME, CE, CRN, NSF, RoHS, UKCA
Connection Type
MNPT
Wetted Materials
Stainless Steel
Freeze Resistant Movement
No
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F (-40 Degrees to 66 Degrees C), -40 Degrees to 200 Degrees F (-40 Degrees to 93 Degrees C)
Field Fillable
No
Vibration Resistance
Dry Case Vibration-Dampened
Dial Color
White
Gauge Case Liquid
None
Pointer Material
Aluminum
Accuracy Grade
ASME B40.100 Grade 1A
Includes Calibration Certificate
No
Primary Pressure Scale Color
Black
Pressure Range Type
Pressure
Removable Bezel
Yes
Pressure Gauge Type
Industrial Pressure Gauge
Burst Pressure
1,400 psi
Accuracy Scale
Full Scale
Dry Dampening Feature
PLUS! Performance
Process Temperature Range
-40 Degrees to 200 Degrees F, -40 Degrees to 250 Degrees F
Includes Vent Plug
Yes
Dial Face Material
Aluminum
Sensor Material
316L Stainless Steel
Primary Scale Minor Graduations
0.5
Non-Sparking
No
Compatible Process Media
Deionized Water
Scale Type
Single
Sensor Type
Bourdon Tube
Bezel Material
304 Stainless Steel
Movement Material
304 Stainless Steel
Process Connection Gender
Male
Case Construction
Welded Joint
Includes Mounting Hardware
No
Cleaned for Oxygen Service
No
Bezel Mounting Type
Bayonet
Pointer Color
Black
Maximum Pressure
30
Operating Temperature Range
-40 Degrees to 150 Degrees F
Process Media Temperature - Minimum
-40 Degrees F
Process Media Temperature - Maximum
200 Degrees F
Primary Scale Color
Black
Primary Scale Pressure Measurement - Maximum
30 psi
Case Liquid
None
Compatible with Brand
Universal
Operating Temperature - Maximum
150 Degrees F
IP Rating
IP65
Operating Temperature - Minimum
-40 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
NEMA Enclosure Rating
4X

Description

Industrial Pressure Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-1.0 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating IP54 (Plug Vented), IP65 (Plug Closed), NEMA 4 (Plug Closed), Primary Pressure Range 0 to 30, Dry Dampening Feature PLUS! Performance
