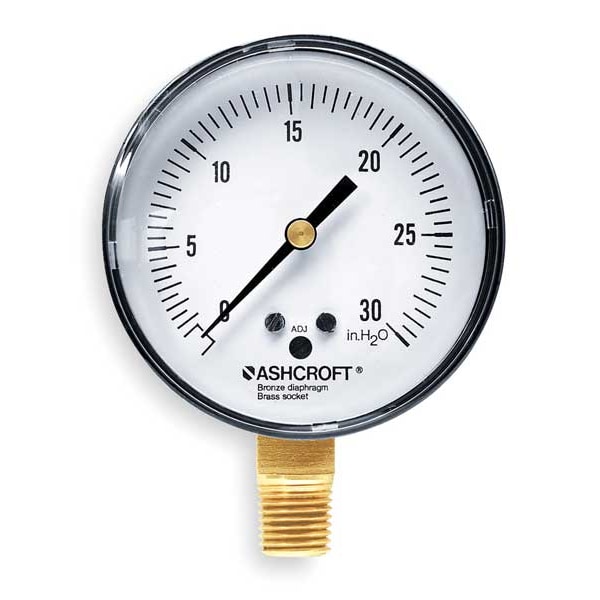

Ashcroft Low Pressure Gauge, 0 to 30 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location 25 1490A 02L 30" H20 - main
Shop ASHCROFT

Low Pressure Gauge, 0 to 30 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # 25 1490A 02L 30" H20

  • Zoro # G2531855

product price:  $64.55
/ea

Key Features

Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
25 1490A 02L 30" H20
Zoro #
G2531855
UPC #
759426366879
Country of Origin
United States

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Nominal Dial Size
2 1/2 in
Case Depth
1.65 in
Bolt Circle Diameter
2.13 in
Case Diameter
2.875 in
Nominal Dial Diameter
2 1/2 in

Details

Item
Low Pressure Gauge
Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Air Compressors, Flow Measurement, Filtration Monitoring, Gas Measurement, OEM Applications, Regulators and Respirators, Vacuum Applications
Gauge Case Material
Polysulfone
Series
1490
Lens Material
Polycarbonate
Primary Pressure Range
0 to 30
Primary Scale Units
in wc
IP/NEMA Rating
IP54
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Graduations
0.50 in wc
Case Color
Black
Calibration Certificate Included
No
Gauge Application
For Natural Gas & Other Gases
Gauge Primary Range Smallest Graduation
0.5
Smallest Graduation
0.5 in wc
Socket Material
Brass
Case Material
Glass-filled polysulfone
Wetted Materials
Brass / Copper
Connection Type
MNPT
Standards
ASME
Pointer Material
Aluminum
Compatible Process Media
Natural Gas
Includes Calibration Certificate
No
Pressure Range Type
Pressure
Primary Scale Minor Graduations
0.5
Sensor Type
Diaphragm
Bezel Mounting Type
Bayonet
Burst Pressure
5 psi
Dial Color
White
Cleaned for Oxygen Service
No
Accuracy Scale
Mid-Scale
Dial Face Material
Aluminum
Vibration Resistance
None
Accuracy Grade
ASME B40.100 Grade A
Includes Mounting Hardware
No
Sensor Material
Beryllium Copper
Adjustable Pointer
No
Field Fillable
No
Gauge Case Liquid
None
Pointer Color
Black
Bezel Material
Polycarbonate
Pressure Gauge Type
Low Pressure Gauge
Process Connection Gender
Male
Scale Type
Single
Removable Bezel
Yes
Ambient Operating Temperature Range
-4 Degrees to 140 Degrees F, -40 Degrees to 82 Degrees C
Dry Dampening Feature
None
Freeze Resistant Movement
No
Includes Vent Plug
No
Operating Temperature Range
-4 Degrees to 140 Degrees F
Process Media Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Primary Scale Pressure Measurement - Minimum
0 in wc
Process Media Temperature - Maximum
150 Degrees F
Primary Scale Pressure Measurement - Maximum
30 in wc
Compatible with Brand
Universal
Case Liquid
None

Description

Low Pressure Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-2-1-2 Percent, Gauge Case Material Polysulfone, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating IP54, Primary Pressure Range 0 to 30, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Low Pressure Gauge, Bolt Circle Diameter 2.13 in
