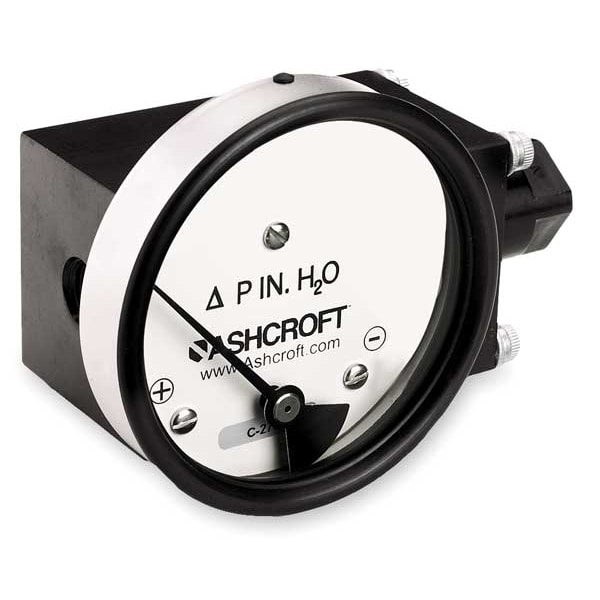

Ashcroft Pressure Gauge, 0 to 25 In H2O 351132FD25SXCYLM25IWD - main

Pressure Gauge, 0 to 25 In H2O

  • Mfr # 351132FD25SXCYLM25IWD

  • Zoro # G0017656

product price: $254.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-2.00%
Process Connection Type
NPT
Process Connection Size
1/4 in
Series
1132
Process Connection Gender
Female
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
351132FD25SXCYLM25IWD
Zoro #
G0017656
UPC #
783029143063
Country of Origin
India

Dimensions

Process Connection Size
1/4 in
Nominal Dial Size
3 1/2 in
Manufacturers Warranty Length
5 yr
Differential Gauge Connection Size
1/4 in
Gauge Nominal Dial Size
4 1/2 in
Manufacturer Warranty Length
5 yr
Case Diameter
4 1/4 in
Bolt Circle Diameter
3.86 in
Case Depth
2.74 in

Details

Item
Differential Pressure Gauge
Accuracy
+/-2.00%
Process Connection Type
NPT
Series
1132
Process Connection Gender
Female
Application
Filtration Monitoring, Flow Measurement, Leak Detection, Liquid Level Measurement
Process Connection Location
In-Line
Housing Material
Aluminum
Pressure Range
0 to 25"WC
Sensor Type
Diaphragm
Basic Gauge Case Material
Metal
Gauge Connection Location
Inline
Differential Pressure Range
0 to 25 in wc
Rated Total Pressure
1500 psi
Body Material
Aluminum
Includes
Instructions
Diaphragm Material
Buna-N
Gauge Operating Temp. Range
0 Degrees to 170 Degrees F
Basic Gauge Wetted Parts
PTFE / Buna-N / Viton or EPDM
Piston Material
PTFE
Gauge Accuracy
+/-2%
Differential Pressure Gauge Type
Differential Pressure Gauge
Standards
Class 1, Groups B, C, D, Class 2 Groups E, F, G, Class 3, NEMA 7, 9 and IP 66
Scale Type
Pressure
Differential Gauge Connection Type
FNPT and MNPT
Seal Material
Buna-N, Viton or EPDM
Differential Pressure Range Value
0 to 25
Differential Pressure Range Units
in wc
Gauge Primary Range Smallest Graduation
2
Dial Material
Stainless steel
Socket Material
Aluminum/Buna-N
Case Material
Stainless Steel
Non-Sparking
No
Sensor Material
Buna-N
Primary Scale Minor Graduations
2
Includes Mounting Hardware
No
Gauge Case Material
Stainless Steel
O-Ring Material
Buna-N
Panel-Mountable
Yes
Blowout Safety Back
No
Compatible Process Media
Air, Noncorrosive Liquid
Pressure Gauge Type
Differential Pressure Gauge
IP/NEMA Rating
IP65
Adjustable Set Points
Yes
Movement Type
Rotary
Includes Vent Plug
No
Lens Material
Glass
Removable Bezel
No
Hazardous Location Rating
Not Rated
Dial Color
White
Ambient Operating Temperature Range
0 Degrees to 170 Degrees F
Includes Calibration Certificate
No
Case Shape
Round
Process Temperature Range
32 Degrees to 175 Degrees F
Maximum Working Static Pressure
1,500 psig
Panel Mount Characteristics
3 0.162 in Dia Holes on 3.86 in Dia Bolt Circle
Pressure Measurement - Maximum
25 in wc
Operating Temperature - Minimum
0 Degrees F
Process Media Temperature - Minimum
32 Degrees F
IP Rating
IP65
Number of Switches
0
Process Media Temperature - Maximum
175 Degrees F
Pressure Measurement - Minimum
0 in wc
Pressure Scale Minor Graduations
2
Operating Temperature - Maximum
170 Degrees F
Product Type
Differential Pressure Gauge
Working Static Pressure - Maximum
1,500 psig

Description

Differential Pressure Gauge, Scale Type Pressure, Pressure Range Minor Div. 2 In. WC, Rated Total Pressure 1500 psi, Full Scale Accuracy ( Percent) +/-2, Connection Size NPT (In.) 1/4, Dial Size (In.) 3-1/2, Ambient Operating Range (F) 0 Degrees To 170 Degrees , Includes Instructions, Manufacturers Warranty Length 1 Year
