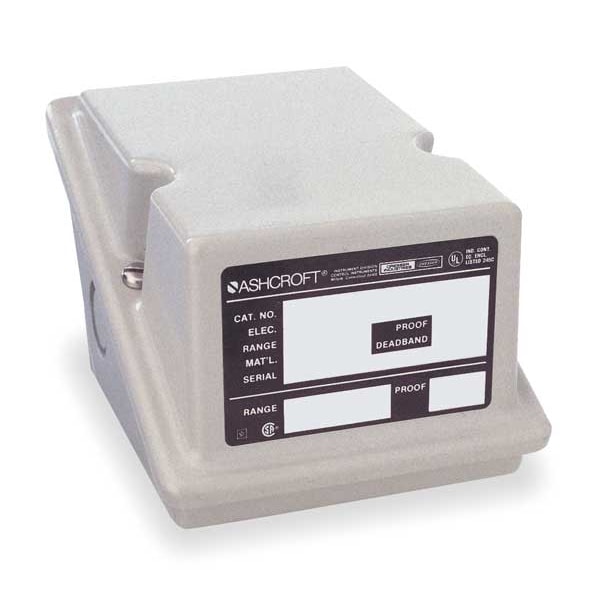

Pressure Switch, Standard, DPST, 4 Ports, 1/2" FNPT, 1/2" MNPT, 1/4" FNPT, 20 to 200 psi Range

  • Mfr # LPAN4HV25XCYLM200

  • Zoro # G0482675

product price:  $310.99
/ea
Free Shipping & Returns

Key Features

Action
Standard
Contact Form
DPST
Number of Pressure Connection Ports
4
Pressure Connection Type
1/2" FNPT, 1/2" MNPT, 1/4" FNPT
Range
20 to 200 psi
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LPAN4HV25XCYLM200
Zoro #
G0482675
UPC #
783156420228
Country of Origin
Canada

Dimensions

Manufacturer Warranty Length
1 yr
Overall Height
0.19 in
Overall Width
0.16 in
Overall Depth
0.24 in

Details

Item
Pressure Switch
Action
Standard
Contact Form
DPST
Number of Pressure Connection Ports
4
Pressure Connection Type
1/2" FNPT, 1/2" MNPT, 1/4" FNPT
Range
20 to 200 psi
Factory On Setting
20 psi
Factory Off Setting
200 psi
Standards
3A Approved, CE, CRN, CSA, RoHS, UL Listed
Actuation Type
Diaphragm
AC Contact Rating
10A @ 125/250V
Series
LP
DC Contact Rating
0.25A @ 250V, 0.5A @ 125V
Pressure Switch Factory On/Off Setting
90% of Range
Pressure Switch Port Type
(1) Port, 1/4 in FNPT
Pressure Switch Electrical Contact Form
DPST
IP Rating
IP66
Pressure Switch Range
20 to 200 psi
Pressure Switch Differential
18 to 180 psi
Deadband Adjustability
Adjustable
Pressure - Minimum
20 psi
Proof Pressure
1,000 psi
Differential Pressure - Minimum
18 psi
Operating Temperature - Minimum
-20 Degrees F
Pressure - Maximum
200 psi
Differential Pressure - Maximum
180 psi
Media Temperature - Maximum
70 Degrees F
Hazardous Location Specification
Class I, Div 2, Group A, B, C, D
Media Temperature - Minimum
50 Degrees F
NEMA Enclosure Rating
4X
Operating Temperature - Maximum
150 Degrees F

Description

Pressure Switch, NEMA Rating 4, 4X, Series LP, HP @ 1 Phase - 120V 1/4, Temp. Range 20 Degrees to 300 Degrees F, Standards 3A Approved, CE, CRN, CSA, RoHS, UL Listed, Special Features Viton(R) Diaphragm, Single Setpoint, Adjustable Deadband, AC Contact Rating 10 A @ 125/250 V
