Shop ASHCROFT

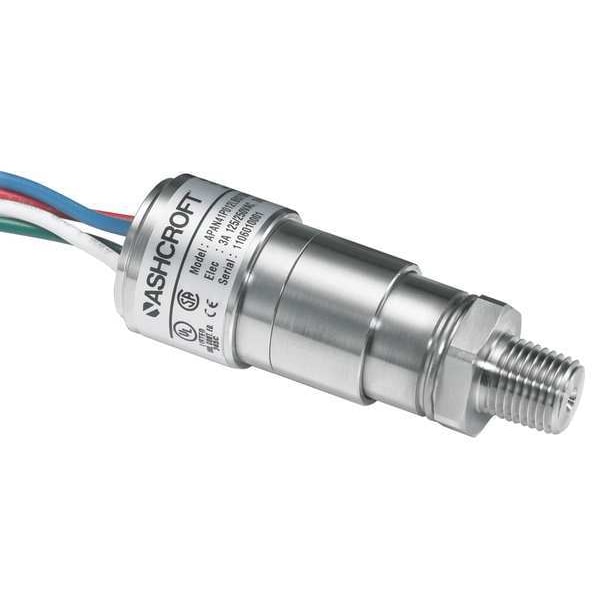

Pressure Switch, Standard, SPDT, 1/4" MNPT, 6 to 30 psi Range, 316 Stainless Steel

  • Mfr # APAN41H012LS0230#-NSR

  • Zoro # G4712452

product price:  $184.99
/ea
Free Shipping & Returns

Key Features

Action
Standard
Contact Form
SPDT
Pressure Connection Type
1/4" MNPT
Range
6 to 30 psi
Housing Material
316 Stainless Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
APAN41H012LS0230#-NSR
Zoro #
G4712452
UPC #
-
Country of Origin
Germany

Dimensions

Overall Width
1.13 in
Overall Height
3.13 in

Details

Item
Pressure Switch
Action
Standard
Contact Form
SPDT
Pressure Connection Type
1/4" MNPT
Range
6 to 30 psi
Housing Material
316 Stainless Steel
Factory On Setting
6 psi
Factory Off Setting
30 psi
Standards
CE, CRN, CSA, ROHS, UL
Operating Temp. Range
-40 Degrees to 210 Degrees F
Process Connection
1/4 in MNPT
Compatible With
Air and Liquids
Wetted Materials
316 Stainless Steel
DC Contact Rating
3A @ 28V DC Inductive, 5A @ 28V DC Resistive
Burst Pressure
9,500 psi
AC Contact Rating
5A at 125/250V AC
Electrical Connection
3-18 AWG PVC Insulated 12" Wire Leads
On Set Point
Field Adjustable
Off Set Point
Field Adjustable
IP Rating
IP67
Series
A-Series
Pressure Switch Range
6 to 30 psi
Pressure Switch Electrical Contact Form
SPDT
Material
316 Stainless Steel
Pressure - Maximum
30 psi
Adjustable Range Type
Field Adjustable
Hazardous Location Specification
Not Rated
Set Point - Maximum
30 psi
Pressure - Minimum
6 psi
Actuator Style
Diaphragm
Set Point - Minimum
4.5 psi
Resistance Properties
Watertight
Compatible Media
Compressed Air, Liquid
Operating Temperature - Maximum
212 Degrees F
NEMA Enclosure Rating
6
Operating Temperature - Minimum
-40 Degrees F

Description

Pressure Switch, NEMA Rating 6, Series A-Series, Standards 3A Approved, CE, CRN, CSA, RoHS, UL Listed, AC Contact Rating 5 A @ 125/250 V
