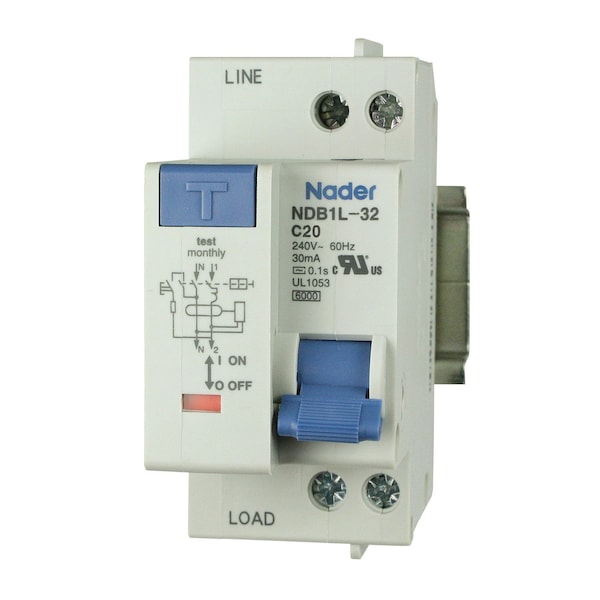

Circuit Breaker, NDB1L-32C Series, 20A, 2 Pole, 240V AC, 4.5kA, C Curve
Mfr # NDB1L-32C-20-240V
Zoro # G811376216
CAD Available
product price:Â $36.29
/eaKey Features
CAD Drawing
Series
NDB1L-32C
Amps
20 A
Number of Poles
2
AC Voltage Rating
240V AC
Circuit Breaker Type
Ground Fault Circuit Interrupter
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- NDB1L-32C-20-240V
- Zoro #
- G811376216
- UPC #
- 813101023386
- Country of Origin
- China
Dimensions
- Width
- 36 mm
- Depth
- 69 mm
- Height
- 78 mm
Details
- CAD Available
- Yes
- Item
- Circuit Breaker
- Series
- NDB1L-32C
- Amps
- 20 A
- Number of Poles
- 2
- AC Voltage Rating
- 240V AC
- Circuit Breaker Type
- Ground Fault Circuit Interrupter
- Circuit Breaker Mounting Style
- Surface Mount/DIN Rail
- Max. AIR Rating
- 4.5kA
- Instantaneous Trip
- Instantaneous
- Terminal Connection
- Screw
- DC Voltage Rating
- Not Rated
- Curve Type
- C
Description
NDB1L-32C-10-240V Ground Fault Circuit Breaker DIN Rail Mount, UL1053 recognized at 10 Amps at 240 Vac. This 10 Amp din rail mounted gfci breaker, RCCB provides short circuit, overload protection and has a 30 mA earth leakage limit when reached safely opens the circuit and provides LED visual trip indication. This din rail gfci breaker has a 4.5 Ka capacity. The NDB1L ground fault circuit breaker din rail mount series feature screw clamp wire terminations, a push to test button, and offers the general purpose C Trip Curve with an instantaneous trip from 5 In to 10 In.
