  13. Lever Lockset, Mechanical, Passage, Grade 1

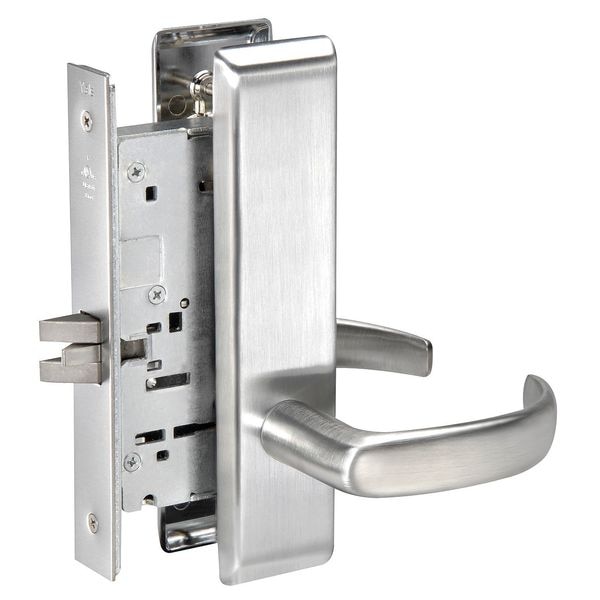

Assa Abloy Accentra Lever Lockset, Mechanical, Passage, Grade 1 PBCN8801FL x 626 - main

Lever Lockset, Mechanical, Passage, Grade 1

  • Mfr # PBCN8801FL x 626

  • Zoro # G0319505

product price: $521.99
/ea
Free Shipping & Returns

Key Features

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
For Use With
Hollow Metal and Wood Doors
Includes
Escutcheon Plate
Key Type
Not Keyed
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PBCN8801FL x 626
Zoro #
G0319505
UPC #
094706218449
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/4 in to 3-1/4 in
For Door Thickness
1-3/4 to 3-3/4"
Door Thickness - Minimum
1 3/4 in
Door Thickness - Maximum
3 1/4 in
Strike Plate Width
1 1/4 in
Strike Plate Height
4 7/8 in

Details

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
For Use With
Hollow Metal and Wood Doors
Includes
Escutcheon Plate
Key Type
Not Keyed
Keyway Type
None
Location Type
Commercial
Lockset Function
Passage
Lockset Grade
1
Lockset Handle Type
Lever
Mortise/Cylindrical
Mortise
Series
8800FL
Style
8800FL Pacific Beach
Finish
Dull Chrome
Strike Dim.
1-1/4 in x 4-7/8 in
Strike Type
Curved Lip
Lockset Finish
Dull Chrome
Standards
ANSI/BHMA A117.1, ANSI/BHMA A156.13, CAL FIRE, 3775-0257:0113, EPD, UL and cUL Listed
Mortise / Cylindrical
Mortise
Ligature Resistant
No
Lockset Fire Rating
3 hr
ADA Compliant
No
Item
Door Lockset
Number of Keys
2
Grade
1
Fire Rated
3 hr.
Function
Passage
Application
Commercial
Strike
1-1/4 x 4-7/8"
Material
Brass, Stainless Steel, Zinc
Type
Escutcheon Plate
Visual Indicator Message
No Message
Green Certification or Other Recognition
Environmental Transparency Through EPD (Environmental Product Declaration)
Case Material
Heavy Gauge Steel Body, Zinc Handle
Handle Type
Lever
Trim Plate Shape
Rectangular
Fire Rating
3 hr
Lockset Style
Pacific Beach
Performance Grade
1
Locking/Unlocking Access - Outside
Not Lockable
Ligature-Resistant
Not Ligature-Resistant
Lockset Function ANSI Code
F01
ANSI Grade
1
Lockset Type
Mechanical
Locking/Unlocking Access - Inside
Not Lockable
Hand Orientation
Non-Handed
Latch Bolt/Dead Bolt
Latch Bolt
Includes Core
Core Not Included
ANSI/BHMA Finish
Satin Chromium-Plated

Description

Mortise Lockset w/Escutcheon, Heavy Duty, Commercial, Pacific Beach (Curved) Style, Satin Chrome (626) Finish, Function Passage, Grade 1, Material Brass, Stainless Steel, Zinc, For Door Thickness 1 3/4 to 3 3/4 In., Backset 2 3/4 In., Front Size Dimension 8 x 1 1/4 In., 1 1/4 x 4 7/8 in ANSI Strike, Required Door Thickness 1 3/4, Fire Rated 3 Hours, Case Material Wrought Steel, Zinc Dichromate, For Use With Wood or Hollow Metal Doors, Includes Escutcheon Plate
