Shop ASSA ABLOY ACCENTRA

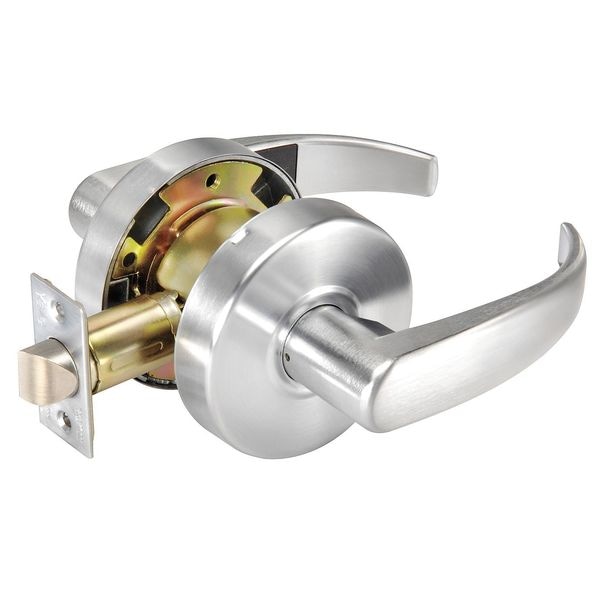

Lever Lockset, Mechanical, Passage, Grade 2

  • Mfr # PB4601LN x 626

  • Zoro # G2753895

product price:  $99.79
/ea

Key Features

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
For Use With
Metal Doors with Metal Frames
Includes
Free Wheeling Lever
Key Type
Not Keyed
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
PB4601LN x 626
Zoro #
G2753895
UPC #
094713923060
Country of Origin
Korea, Republic of

Dimensions

Required Door Thickness
1-3/8 in to 1-3/4 in
For Door Thickness
1-3/8 to 1-3/4"
Door Thickness - Minimum
1 3/8 in
Strike Plate Lip Length
1 1/4 in
Strike Plate Height
4 7/8 in
Door Thickness - Maximum
1 3/4 in
Strike Plate Width
1 1/4 in

Details

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
For Use With
Metal Doors with Metal Frames
Includes
Free Wheeling Lever
Key Type
Not Keyed
Keyway Type
None
Location Type
Commercial
Lockset Function
Passage
Lockset Grade
2
Lockset Handle Type
Lever
Mortise/Cylindrical
Cylindrical
Number of Pins
6
Series
4600LN
Style
4600LN Pacific Beach
Finish
Satin Chrome
Strike Dim.
2-1/4 in x 4-7/8 in
Standards
ANSI/BHMA A156.2, ANSI/BHMA A156.41, ANSI/SDI 250.13, ASTM E1886, ASTM E1996, ASTM E330, ICC A117.1, NFPA 80, TAS 201, TAS 202, TAS 203
Item
Door Lockset
Lockset Fire Rating
3 hr
Mortise / Cylindrical
Cylindrical
ADA Compliant
Yes
Handle Material
Heavy Gauge Steel
Lockset Finish
Satin Chrome
Ligature Resistant
No
Lockset Performance Strength
Medium Duty
Strike Type
Curved Lip
Grade
2
Number of Keys
0
Fire Rated
3 hr.
Keying
Unkeyed
Strike
2-1/4 x 4-7/8"
Function
Passage
Material
Heavy Gauge Steel
Application
Commercial
Visual Indicator Message
No Message
Trim Plate Shape
Round
Lockset Function ANSI Code
F75
Fire Rating
3 hr
Lockset Style
Pacific Beach
Locking/Unlocking Access - Inside
Not Lockable
Latch Bolt/Dead Bolt
Latch Bolt
ANSI Grade
2
Includes Core
Core Not Included
Locking/Unlocking Access - Outside
Not Lockable
Lockset Type
Mechanical
Knob/Handle Material
Heavy Gauge Steel
Performance Grade
2
Hand Orientation
Non-Handed
ANSI/BHMA Finish
Satin Chromium-Plated
Ligature-Resistant
Not Ligature-Resistant

Description

Lever, Medium Duty, Lockset Function Passage, Style Pacific Beach, Handle Material Heavy Gauge Steel, Satin Chrome Finish, Strike Type Square Corner Full Lip Strike, Strike Dim. 2-1/4 In. x 4-7/8 In., Fire Rated 3 hr., Grade 2, Series 4600LN, Location Type Commercial, Backset 2-3/4 In., Required Door Thickness 1-3/8 In. to 1-3/4 In., Keying Unkeyed, For Use With Metal Doors with Metal Frames, Includes Free Wheeling Lever, Standards ADA, ANSI/BHMA A156.2 Grade 2, UL and cUL
