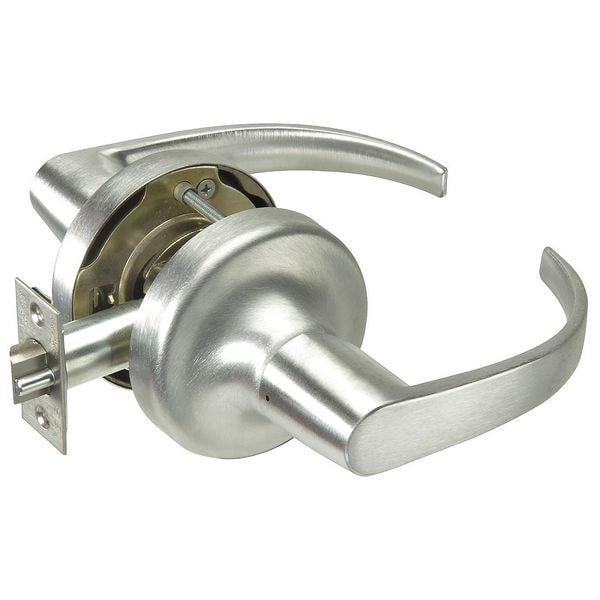

Assa Abloy Accentra Lever Lockset, Mechanical, Passage, Grade 2 PB5301LN x 626 x YMS - main

Lever Lockset, Mechanical, Passage, Grade 2

  • Mfr # PB5301LN x 626 x YMS

  • Zoro # G0465184

product price: $176.99
/ea
Free Shipping & Returns

Key Features

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
Includes
Micro Sheild Anti-Microbial Finish
Key Type
Not Keyed
Keyway Type
None
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PB5301LN x 626 x YMS
Zoro #
G0465184
UPC #
094713923978
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/8 in to 1-3/4 in
For Door Thickness
1-3/8 to 1-3/4"
Strike Plate Height
4 7/8 in
Door Thickness - Minimum
1 3/8 in
Strike Plate Lip Length
1 1/4 in
Strike Plate Width
1 1/4 in
Door Thickness - Maximum
2 1/4 in

Details

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
Includes
Micro Sheild Anti-Microbial Finish
Key Type
Not Keyed
Keyway Type
None
Location Type
Commercial
Lockset Function
Passage
Lockset Grade
2
Lockset Handle Type
Lever
Mortise/Cylindrical
Cylindrical
Number of Pins
6
Series
5300LN
Style
5300LN Pacific Beach
Finish
Antimicrobial Dull Chrome
ADA Compliant
Yes
Strike Type
Curved Lip
Item
Door Lockset
Lockset Finish
Dull Chrome
Strike Dim.
2-1/4 in x 4-7/8 in
Ligature Resistant
No
Lockset Fire Rating
3 hr
Standards
ANSI/BHMA A156.2, ANSI/BHMA A156.41, ANSI/SDI 250.13, ASTM E1886, ASTM E1996, ASTM E330, ICC A117.1, NFPA 80, TAS 201, TAS 202, TAS 203
Handle Material
Heavy Gauge Steel
Mortise / Cylindrical
Cylindrical
Lockset Performance Strength
Medium Duty
Grade
2
Number of Keys
2
Keying
Unkeyed
Fire Rated
3 hr.
Type
MicroShield(R)
Application
Commercial, Industrial
Material
Heavy Gauge Steel
Function
Passage
Strike
2-1/4 x 4-7/8"
Visual Indicator Message
No Message
Performance Grade
1
Locking/Unlocking Access - Outside
Not Lockable
ANSI/BHMA Finish
Satin Chromium-Plated
Ligature-Resistant
Not Ligature-Resistant
Lockset Function ANSI Code
F75
Includes Core
Core Not Included
Knob/Handle Material
Heavy Gauge Steel
Trim Plate Shape
Round
Hand Orientation
Non-Handed
Lockset Style
Pacific Beach
Fire Rating
3 hr
Latch Bolt/Dead Bolt
Latch Bolt
Lockset Type
Mechanical
ANSI Grade
2
Locking/Unlocking Access - Inside
Not Lockable

Description

Cylindrical Lockset, MicroShield(r), Commercial, 5300LN Series, Curved Style, Dull Chrome, MicroShield Antimicrobial Finish, Function Passage, Grade 2, Material Heavy Gauge Steel, For Door Thickness 1-3/8 to 1-3/4 In., Backset 2-3/4 In., Front Size Dimension Rose 3-1/2 In., 2-1/4 x 4-7/8 In. Strike, Standards ANSI/BHMA A156.2 Grade 2, ADA, UL and cUL, Fire Rated 3 hr., Includes MicroSheild Anti-Microbial Finish
