  13. Lever Lockset, Mechanical, Privacy, Grade 1

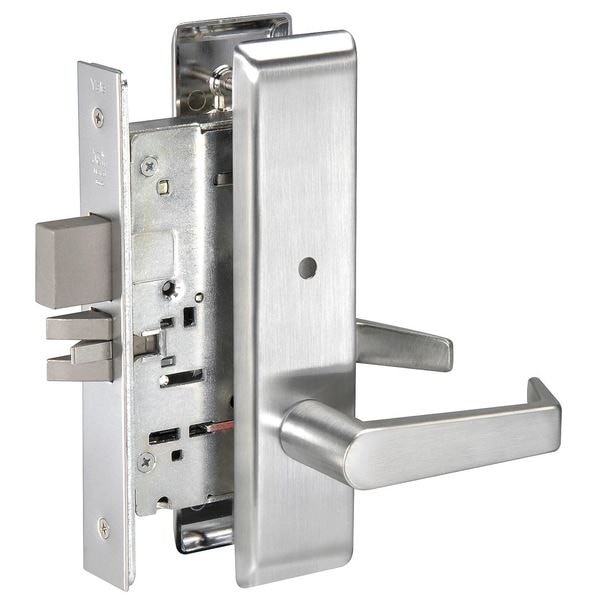

Assa Abloy Accentra Lever Lockset, Mechanical, Privacy, Grade 1 AUCN8802FL x 626 - main

Lever Lockset, Mechanical, Privacy, Grade 1

  • Mfr # AUCN8802FL x 626

  • Zoro # G0528622

product price: $535.99
/ea
Free Shipping & Returns

Key Features

Lockset Function
Privacy
Location Type
Commercial
Electrical/Mechanical
Mechanical
Grade
1
Finish
Dull Chrome
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AUCN8802FL x 626
Zoro #
G0528622
UPC #
049306853316
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/4 in to 3-1/4 in
For Door Thickness
1-3/4 to 3-3/4"
Door Thickness - Maximum
3 1/4 in
Strike Plate Width
1 1/4 in
Strike Plate Height
4 7/8 in
Door Thickness - Minimum
1 3/4 in

Details

Item
Door Lockset
Lockset Function
Privacy
Location Type
Commercial
Electrical/Mechanical
Mechanical
Grade
1
Finish
Dull Chrome
Series
8800FL
Backset
2 3/4 in
Strike Dim.
1-1/4 in x 4-7/8 in
Includes
Escutcheon Plate
ADA Compliant
No
Features
Dummy Trim Inside
Key Type
Not Keyed
Lockset Finish
Dull Chrome
Standards
ANSI/BHMA A117.1, ANSI/BHMA A156.13, CAL FIRE, 3775-0257:0113, EPD, UL and cUL Listed
Mortise / Cylindrical
Mortise
Ligature Resistant
No
Lockset Grade
1
Number of Keys
2
Style
8800FL Augusta
Lockset Fire Rating
3 hr
Mortise/Cylindrical
Mortise
Strike Type
Curved Lip
Lockset Handle Type
Lever
For Use With
Hollow Metal and Wood Doors
Keyway Type
None
Fire Rated
3 hr.
Keying
Keyed Different
Visual Indicator Message
No Message
Green Certification or Other Recognition
Environmental Transparency Through EPD (Environmental Product Declaration)
Strike
1-1/4 x 4-7/8"
Material
Brass, Stainless Steel, Zinc
Handle Type
Lever
Type
Escutcheon Plate
Function
Privacy
Case Material
Heavy Gauge Steel Body, Zinc Handle
Pins
6
Locking/Unlocking Access - Inside
Thumb Turn
Hand Orientation
Non-Handed
Fire Rating
3 hr
ANSI/BHMA Finish
Satin Chromium-Plated
Includes Core
Core Not Included
Lockset Type
Mechanical
Lockset Style
Augusta
Trim Plate Shape
Rectangular
Locking/Unlocking Access - Outside
Not Lockable
Ligature-Resistant
Not Ligature-Resistant
Application
Commercial
Performance Grade
1
Lockset Function ANSI Code
F19
Latch Bolt/Dead Bolt
Dead Bolt, Latch Bolt
ANSI Grade
1

Description

Mortise Lockset w/Escutcheon, Heavy Duty, Commercial, Augusta (Right Angle) Style, Satin Chrome (626) Finish, Function Privacy, Grade 1, Material Brass, Stainless Steel, Zinc, For Door Thickness 1 3/4 to 3 3/4 In., Backset 2 3/4 In., Front Size Dimension 8 x 1 1/4 In., 1 1/4 x 4 7/8 Required Door Thickness 1 3/4, Fire Rated 3 Hours, Case Material Wrought Steel, Zinc Dichromate, For Use With Wood or Hollow Metal Doors, Includes Escutcheon Plate
