  11. Barrel Level Gauge, 55 Gal, 2 In NPT
Shop All Liquid Level Gauges
At-A-Glance

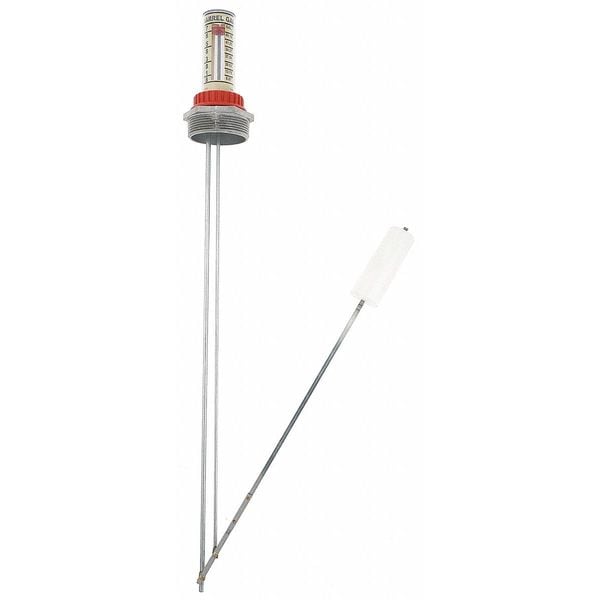

Barrel Level Gauge, 55 Gal, 2 In NPT

product price: $64.19
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Barrel
  • Drum Capacity 55 gal
  • Tank Depth 33 1/2 in
  • Connection Size 2 in NPT
  • Calibration Unit Increments Full, 7/8, 3/4, 5/8, 1/2, 3/8, 1/4, 1/8 Empty plus Gallons and Liters
See all product information

Product Information

Dimensions

Tank Depth 33 1/2 in
Connection Size 2 in NPT
Manufacturers Warranty Length 1 yr
Extension Length 0 in
For Container Depth 33 1/2 in
Pipe Size 2 in
Manufacturer Warranty Length 1 yr

Details

Type Barrel
Drum Capacity 55 gal
Calibration Unit Increments Full, 7/8, 3/4, 5/8, 1/2, 3/8, 1/4, 1/8 Empty plus Gallons and Liters
Rod Material Galvanized Steel
Calibration Unit Material Inner and Outer Plastic
Rivet Material Brass
Bushing Material Aluminum
Item Level Gauge
Assembly Nut Material HDPE
Gasket Material Duro Nitrile
Float Material HDPE
Graduation Marks 1/2; 1/4; 1/8; 3/4; 3/8; 5/8; 7/8; Empty; Full; LITERS; GALLONS
Features Minimal Upkeep, Quick Installation and Easy/Inexpensive Repair, Simple Mechanical Design Promotes Durability
Thread Type NPT
Units of Measurement Inches
Thread Gender Male
Increment of Variation 1/4, 1/8, Gallons, Liters
For Container Capacity 55 gal
Window Material Cellulose Acetate
For Container Type Standing Barrels
For Liquid Type Diesel, Gasoline, Hydraulic Oil
Float Rod Material Galvanized Steel
Housing Material Cellulose Acetate
Seal Material Nitrile Rubber

Description

Level Gauge, Extension Length 0 in, Float Material HDPE, For Container Capacity 55 gal, For Container Depth 33 1/2 in, For Container Type Standing Barrels, For Liquid Type Diesel, Gasoline, Hydraulic Oil, Graduation Marks 1/2; 1/4; 1/8; 3/4; 3/8; 5/8; 7/8; Empty; Full; LITERS; GALLONS, Includes Not Applicable, Increment of Variation 1/4, 1/8, Gallons, Liters, Pipe Size 2 in, Assembly Nut Material HDPE, Bushing Material Aluminum
