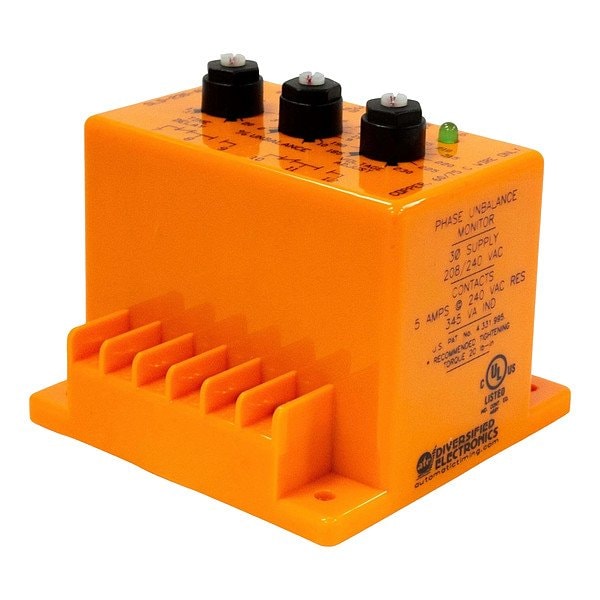

Phase Monitoring Relays
Mfr # SLD440ALE
Zoro # G916497908
product price:Â
$
516.99
/ea
Free Shipping & Returns
Key Features
Phase Loss Sensitivity
Yes
Phase Reversal
Yes
Phase Reversal Time Delay
100 msec
Phase Unbalance
2 to 10%
Phase Unbalance Time Delay
100.0 ms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- SLD440ALE
- Zoro #
- G916497908
- UPC #
- -
- Country of Origin
- Taiwan, Province of China
- Item
- Phase Monitor Relay
- Phase Loss Sensitivity
- Yes
- Phase Reversal
- Yes
- Phase Reversal Time Delay
- 100 msec
- Phase Unbalance
- 2 to 10%
- Phase Unbalance Time Delay
- 100.0 ms
- Restart
- Auto
- Maximum Operating Temperature
- 131 Degrees F
- Series
- SLD Series
- Standards
- cURus
- Monitored Parameters
- Phase Loss, Phase Reversal, Phase Unbalance, Undervoltage
- Minimum Operating Temperature
- 32 Degrees F
- For Use With
- 3-Phase Equipment
- Mounting Style
- Panel
- Contact Form
- DPDT
- Weight
- 0.84 lb
- Features
- Lock Shaft, or Screwdriver Adjustment, Several Enclosure Styles
- Undervoltage
- 370 to 460V
- Adjustment Method
- Lock Shaft, Screwdriver
- Base Shape
- Square
- Power Consumption
- 7 VA
- Contact Rating (AC)
- 3 A @ 600V
- Input Voltage
- 440 to 480V AC
Description
Phase Monitor Relay, Base Shape Square, Contact Form DPDT, Contact Rating (AC) 3 A @ 600V, Input Voltage 440 to 480V AC, Monitored Parameters Phase Loss, Phase Reversal, Phase Unbalance, Undervoltage, Restart Auto, Mounting Style Panel, Adjustment Method Lock Shaft, Screwdriver, Body Depth 3.25 in, Body Height 3.63 in, Body Width 4 in, Features Lock Shaft, or Screwdriver Adjustment, Several Enclosure Styles, For Use With 3-Phase Equipment, Maximum Operating Temperature 131 Degrees F
