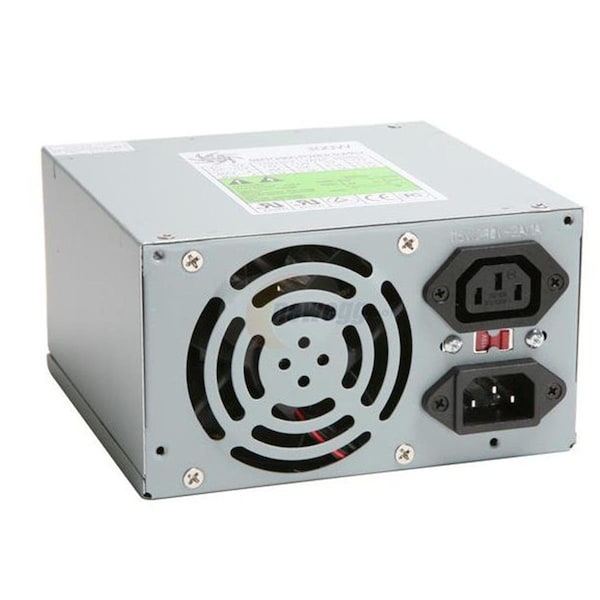

Athena Computer Power AP-AT30 300W AT Power Supply
Mfr # AP-AT30
Zoro # G503881547
product price: $62.99
/eaGet a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
AP-AT30
Zoro #
G503881547
UPC #
821524013006
Country of Origin
China
Description
Summary: This power supply is compatible with many old model system, Accounting system, Automatic controll machine, storage PCs for power supply replacement.
General Information:
High efficiency.
Low Ripple and Noise.
Output over voltage protection.
Short circuit protection on all outputs.
Reset table power shut down.
Approved by UL, CB and CE.
6Pin P8 + 6pin P9 AT Connector.
FCC part 15 subpart J Class B at 115VAC operation and CISPR 22 Class B at 230 VAC operation.
100% burn-in under high ambient temperature (50J).
Vacuum-impregnated transformer.
100% Hi-pot tested.
Dimension: 5.75"W x 3.25"H x 5.5"D.
Power Description:
Output Power: 300W.
Input Voltage: 115V/230V AC.
Frequency: 60/ 50 Hz.
Voltage (Output): +5V, -5V, +12V, -12V.
MAX(A)(Output): 30A, 0.5A, 10A, 0.5A.
MIN(A)(Output): 0.5A, 0.5A, 0.5A, 0.5A.
Technical Information:
Fan: Rear Fan.
MTBF: 100000 Hours at 25 degrees C.
Connectors: 6+6pin AT P8/P9 | 4pin AT Push Button| 4pin Molex | 4pin FDD.
Package: 10 PCs/BOX (27Lbs).
General Information:
Power Description:
Technical Information:
