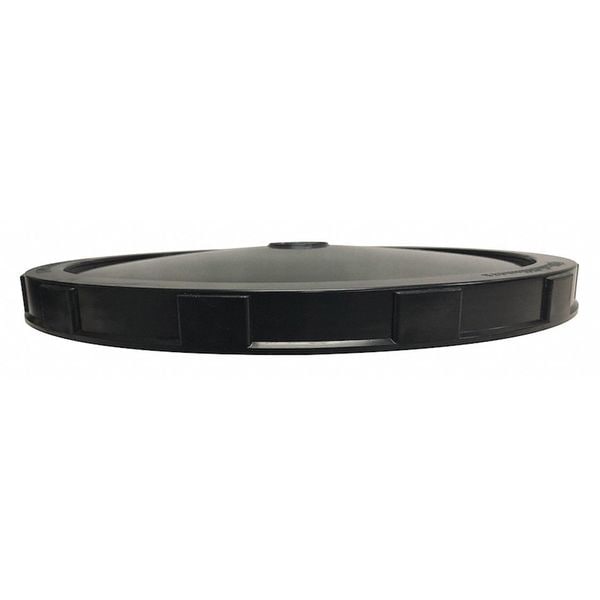

Diffuser, Fine Bubble Disc, 12 In Dia

Hover or click to zoom Tap to zoom
Key Features
  • Item: Diffuser
  • Type: Fine Bubble Disc, 12 in dia
  • Material of Construction: polypropylene
  • Length (In.): 12 1/2 in
  • Width (In.): 12 1/2 in
  • Height (In.): 3 1/2 in
  • Gallons Mixed/Hour @ 6 Ft. Depth per CFM Air Input: 8.1
  • Manufacturers Warranty Length: 1 yr
See full product details
$51.51
2% off
$50.41
Join our email list for 10% off your first order
For 10% Off Your First Order
Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns 30-Day Returns
125 U.S.-Based Customer Service Agents 125 U.S.-Based Customer Service Agents

Atlantic Diffusers #AB-70006 Specifications

  • Item: Diffuser
  • Type: Fine Bubble Disc, 12 in dia
  • Material of Construction: polypropylene
  • Length (In.): 12 1/2 in
  • Width (In.): 12 1/2 in
  • Height (In.): 3 1/2 in
  • Gallons Mixed/Hour @ 6 Ft. Depth per CFM Air Input: 8.1
  • Manufacturers Warranty Length: 1 yr
  • Air Requirements (SCFM): 1.0-10.0
  • Ideal For: Water Aeration/Oxygenation
  • Fitting Size (In.): 3/4 in MPT
  • Active Surface Area (Sq.-In.): 101
  • Application: Water and Wastewater Treatment
  • Active Membrane: EPDM
  • Flow Interference (In.): 13 1/2 in
  • Shop By: Closeouts
  • Manufacturer Warranty Length: 1 yr
  • Discharge Type: Disc
  • Compatible with Media Type: Wastewater, Oxygen, Filtered Water
  • Diffuser Height: 1.6 in
  • Active Surface Area: 101 sq in
  • Compatible Intake Pipe Size: 3/4 in
  • Volume Mixed Per Hour: 8.1 gal @ 6 ft Depth and 1 cfm
  • Diffuser Type Broad: Disc
  • Number of Compressors: 1
  • Tubing Diameter: 3/4 in
  • Air Tubing Diameter: 3/4 in
  • Pump Width: 12.5 in
  • Number of Air Tubing Rolls: 0
  • Active Membrane Diameter: 10.3 in
  • Bubble Size: 1 to 3 mm
  • Intake Size: 3/4 in
  • Flow Interference Size: 13.5 in
  • Pump Height: 3.5 in
  • Number of Diffusers: 1
  • Diffuser Frame Material: Polypropylene
  • Bubble Type: Fine
  • Air Flow Rate (Minimum): 1 scfm
  • Minimum Depth Required: 6 in
  • Air Flow Rate (Maximum): 10 scfm
  • Mount Material: Polypropylene
  • Intake Type: NPT
  • Active Membrane Material: EPDM
  • Country of Origin (subject to change): Taiwan, Province of China

Description

Diffuser, Diffuser Type Diffuser Disc, Air Flow Rate (Maximum) 10 scfm, Air Flow Rate (Minimum) 1 scfm, Active Surface Area 101 sq in, Compatible Intake Pipe Size 3/4 in, Minimum Depth Required 6 in, Bubble Type Fine, Bubble Size 1 to 3 mm, Number of Air Tubing Rolls 0, Number of Compressors 1, Discharge Type Disc, Active Membrane Diameter 10.3 in, Active Membrane Material EPDM, Air Tubing Diameter 3/4 in, Compatible with Media Type Wastewater, Oxygen, Filtered Water
