Circuit Breaker, 32A, 2 Pole, 480V AC, C Curve
Mfr # NDB2-63C32-2
Zoro # G812120214
Key Features
Specifications
Product Information
Dimensions
Details
Description

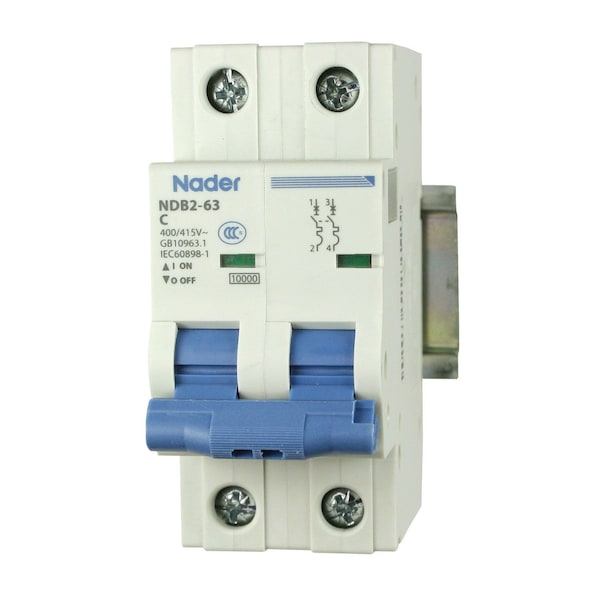

NDB2-63C32-2 is a DIN rail circuit breaker, MCB mini circuit breaker, 32 amp MCB, two pole rated for UL1077 supplemental applications. This DIN rail breaker is a thermal magnetic MCB breaker used in 480 Vac and 125 Vdc circuits. Features for this two pole circuit breaker include 36 mm wide foot print, DIN rail mounting, visual LED indication when tripped, C trip curve for typical inductive loads, overload and short circuit protection, easy to wire screw clamp MCB terminations, RoHS compliant, and superior 10kA interrupt capacity. Certificates and standards include UL1077, IEC60898-1, GB 10963.1 and UL1077,TUV, CE, CCC. NDB2-63C32-2 is a 32 amp MCB DIN rail circuit breaker.
- • 2-Pole
- • 32-Amp
- • 480V AC
- • 36mm Width
