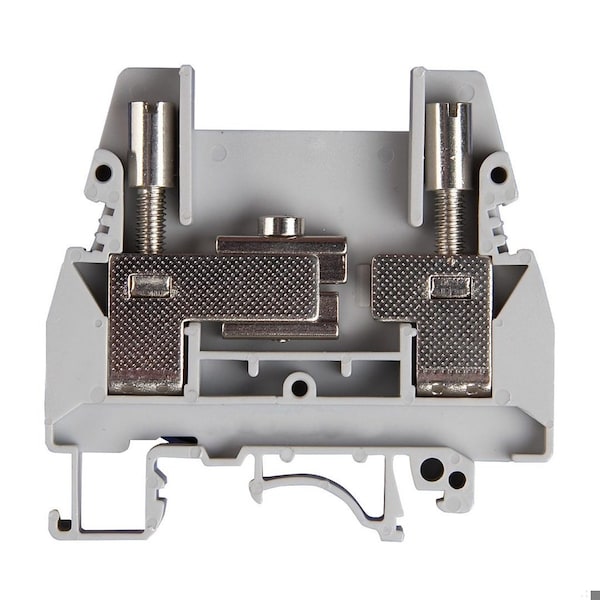

CT Terminal Block, Test Socket Screws, DIN Rail Sliding Link Shorting Terminal Block, 26-8AWG, 10PK
Mfr # ASIURTKSBEN
Zoro # G612120230
Key Features
Specifications
Details
- MFR #
- ASIURTKSBEN
- Zoro #
- G612120230
- UPC #
- 813101028527
- Country of Origin
- China
- Item
- Terminal Block
- Mounting Type
- DIN
- Housing Color
- Gray
- Includes
- Terminal Block
Description
The ASIURTKSBEN is a DIN rail CT terminal block with a sliding link circuit disconnect, typically used in CT circuits. This modular DIN rail shorting terminal block uses reliable screw clamp wire terminations and mounts on the industry standard DIN rail. The screw lock sliding link disconnect is ideal in electrical applications where it is necessary to have a secure method of opening and closing the circuit such as when tests are being conducted often found in the utility industry. The CT terminal block screws feature a socket head capable of accepting a 4 mm test plug. Both a pluggable 2 position jumper and a variety of side entry jumpers are available and can be used to short out the terminal blocks as normally done in CT or current transformer circuits. The ASIURTKSBEN DIN rail sliding link terminal block is gray in color, has a rating of 20 to 8 AWG, 50 Amps at 300 Volts. Pkq Qty 10pcs
- • DIN Rail Mount
- • 20-8 AWG
