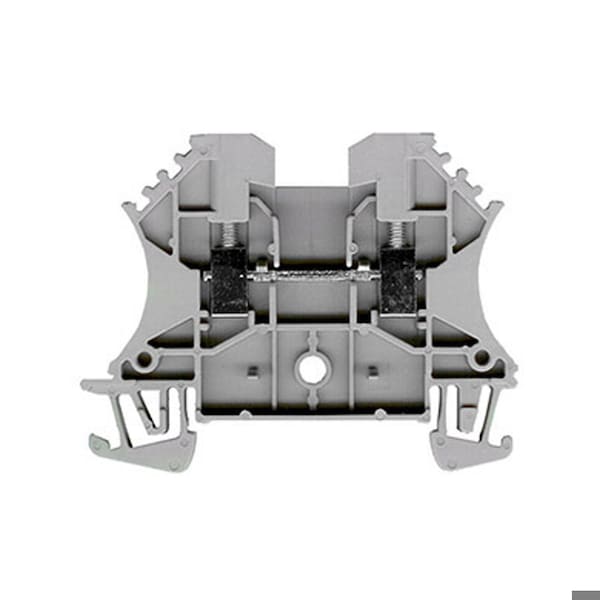

Equivalent Terminal Block, DIN Rail Mount 1492-J4 Replacement, ULRated 28-10 AWG, 35A, 600V, Gray, 50PK
Mfr # ASI1492J4
Zoro # G415656578
product price:Â
$
39.59
/pk 50, $0.79/ea
Key Features
Mounting Type
DIN
Housing Color
Gray
Overall Width
0.75 in
Overall Length
4 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ASI1492J4
- Zoro #
- G415656578
- UPC #
- 813101025281
- Country of Origin
- China
Dimensions
- Overall Width
- 0.75 in
- Overall Length
- 4 in
Details
- Item
- Terminal Block
- Mounting Type
- DIN
- Housing Color
- Gray
Description
ASI1492J4 is a 1492-J4 functionally equivalent terminal block that has a similar design, dimensions and ratings but with the added improvements of a nickel-plated copper alloy metal body rather than steel providing better connectivity; plated high tensile alloy screws for secure wire terminations. The ASI1492J4 equivalent 1492-J4 feed through terminal block has a flame resistant UL94V0 housing and measures 6 mm wide, is UL rated 35 Amps at 600 volts and accepts 28 to 10 AWG wire. Additionally, if you have been using the competitive version, please note that the ASI 1492 terminal block accessories are interchangeable. The ASI1492-J4 mounts onto standard DIN rail and can easily bridge common connections.
- 35 Amp
- Nickel-Plated Copper Alloy Metal Body
- Accepts 28-10 AWG
- Din Rail Mount
