Panel Interface Connector With A 15A Breaker And A 120V GFCI Receptacle,

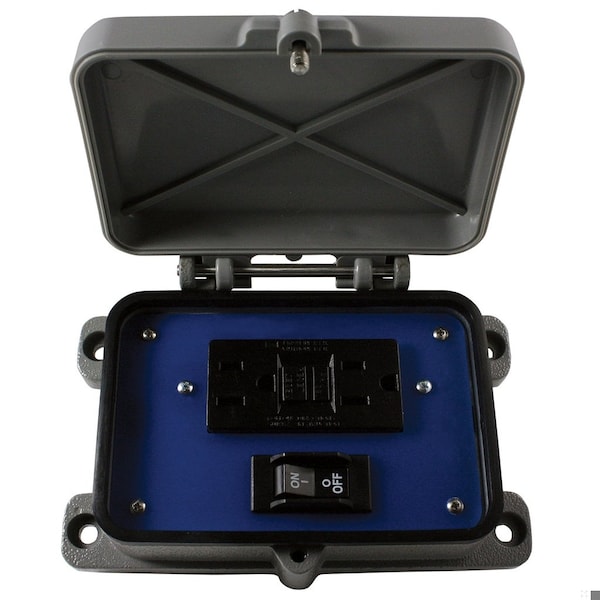

The ASI RAI-GFCI-109-B is a panel interface connector or robust through panel interface consisting of a 15A circuit breaker and a 120V GFCI receptacle mounted in an aluminum connector housing witch a locking cover, making this a waterproof interface. The circuit breaker is rated at 15 amp at 250 Vac circuit breaker. Whether it is a tripped circuit or for manual operation, you only have to open the locking cover of the panel interface connector mounted on the exterior of the panel in order to access the circuit breaker. The remote access interface or panel interface connector mounts with 4 screws in a cut-out made on the side of a panel. Once mounted, there is a protected gateway between the inside and outside of the panel. The housing is gasketed so that the mounting to the enclosure wall is sealed and when the locking cover is closed and a protection level of NEMA 4, 4X or IP65 is achieved. The internal connections to the remote access interface or panel interface connector are easy to wire after installation. The range of options for ASI Panel Interface Connectors include AC receptacles or outlets, circuit breakers and connectors such as RJ or Ethernet connections, and D-subminiature. RAI-GFCI-109-B is a panel interface connector with 120V GFCIreceptacle and a 15 amp circuit breaker.

• • 120V GFCI Receptacle
• • 120V GFCI
• • Din Rail Mount
