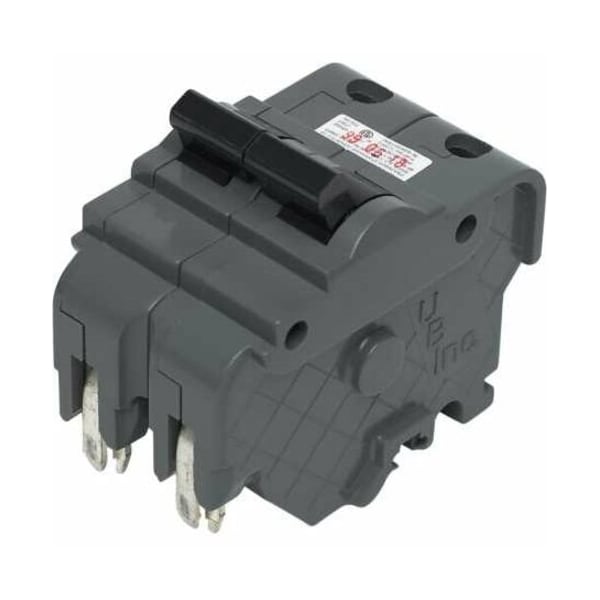

Federal Pacific Miniature Circuit Breaker, UBIF Series, 40A, 2 Pole, 120/240V AC, 10kA at 120/240V AC UBIF240N - main

Miniature Circuit Breaker, UBIF Series, 40A, 2 Pole, 120/240V AC, 10kA at 120/240V AC

  • Mfr # UBIF240N

  • Zoro # G3229073

CAD Available
product price:  $72.79
/ea

Key Features

CAD Drawing
Series
UBIF
Amps
40A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
UBIF240N
Zoro #
G3229073
UPC #
094925019421
Country of Origin
Philippines

Dimensions

Frame Size
70A/HACR
Width
2 in
Depth
2.55 in
Height
3.36 in
Min. Wire Size
14 AWG
Max. Wire Size
6 AWG
Length
3.36 in

Details

CAD Available
Yes
Item
Miniature Circuit Breaker
Series
UBIF
Amps
40A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Phase
1
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Plug In
Max. AIR Rating
10kA at 120/240V AC
Trip Type
Thermal
Instantaneous Trip
No
Terminal Connection
Lugs
DC Voltage Rating
Not Rated
Standards
ETL listed
For Use With
Federal Pacific Load Centers
Min. Operating Temp.
0 Degrees F
Compatible Panelboard/Load Center Series
X125-0816C
Max. Operating Temp.
250 Degrees F
Compatibility
Load Centers: Pacific, Pushmatic, Zinsco
Additional Information
Type: UBIF, Requires Two 1" Space, Voltage Rating (VAC): 120/240, Interrupting Rating (kA): 10, Rated: HACR
Form Factor
Plug-in
Voltage
120/240VAC

Description

Miniature Circuit Breaker, Amps 40 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Standard, Number of Poles 2, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Plug In, Compatible Panelboard/Load Center Series X125-0816C, Phase Single, Series UBIF, Max. AIR Rating 10kA at 120/240V AC, For Use With Federal Pacific Load Centers, Terminal Connection Lug, Frame Size 70A/HACR, Length 3.36 in, Width 2 in, Depth 2.55 in
