Thermocouple Terminal Block, Type K, DIN Rail Mount, 1 Amp, 55 Volt, 26-14AWG
Mfr # ASI431016
Zoro # G615656583
Key Features
Specifications
Product Information
Dimensions
Details
Description

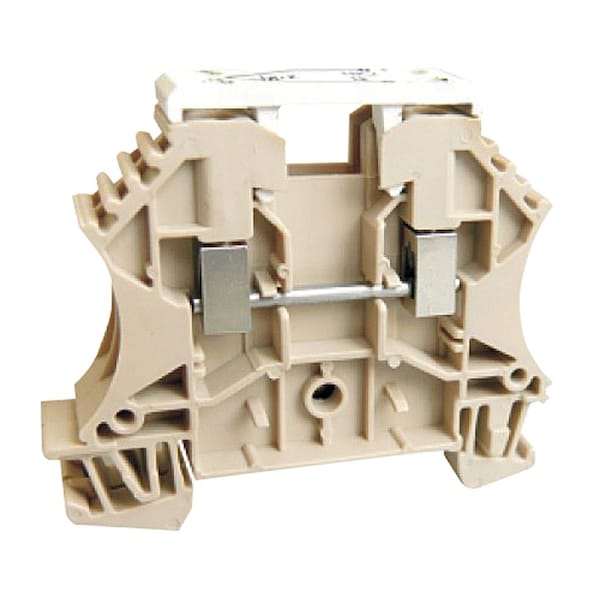

ASI431016 is a thermocouple terminal block this is used with type K thermocouples. This thermocouple terminal block mounts on a standard 35mm DIN rail and is used to connect type K thermocouple sensor extension leads. This DIN rail type k thermocouple terminal block is a 10.4 mm wide beige screw clamp terminal block rated at 26 to 14 AWG and 1 Amp at 55 Volt. This thermocouple terminal block for type k thermocouples has two poles per block and each current bar is made of the same metal as the conductors, chromel and alumel. The intermediary metal body is designed so that no false signals are transmitted within the terminal when temperature differences occur between the positive and negative paths.
- 1 Amp
- Thermouple Terninal Block
- Accepts 26-14 AWG
- Din Rail Mount
